Operating Hours Counter Functions

The operating hours counter will be activated when the ignition switch is in the accessory or on position. In order to operate correctly, the following conditions must be met:

1. Main clutch switch must be engaged

The operating hours counter displays the following data on the digital display line (B):

1. Cutterhead operating hours per field
2. Cutterhead operating hours per day (Sum icon)
3. Total cutterhead operating hours (T icon)
4. Fuel consumption per hour

The operating hours information is displayed in the following sequence (see table).

Row Counter Fuel consumption per hour Absolute fuel consumption
1st press Time per field Liters per hour-field Liters
2nd press Time per day Liters per hour-day Liters
3rd press Total time Liters per hour-total Liters
4th press Liters per hour



The first time that switch (A) is pressed, the cutterhead operating hours per field value will be displayed on the digital display line (B) along with the hour units (h) and the operating hour icon (C) will also be displayed. Successively pressing the statistic switch (F) at this time will display the statistics for this field (liters per hour and absolute fuel consumption).

Pressing the switch (A) for the second time will result in the cutterhead operating hours per day value being displayed (summation symbol (D) and hour units are displayed). Successively pressing the statistic switch (F) at this time will display the statistics for this day (liters per hour and absolute fuel consumption).

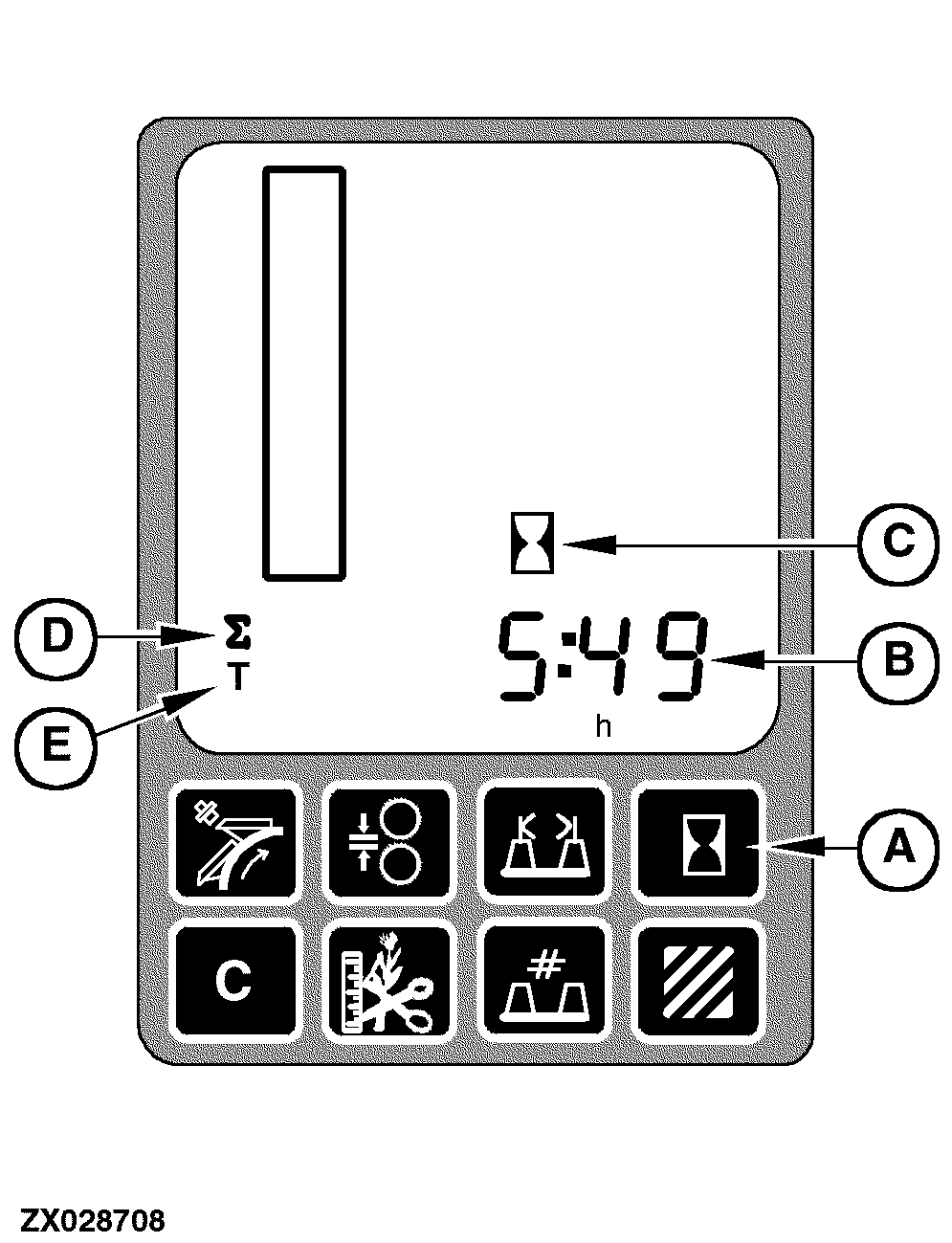

ZX028708
ZX1035987


A-Operating Hour Switch
B-Display Line
C-Operating Hour Icon
D-Sum Symbol
E-Total Symbol
F-Statistics Switch

OUZXMAG,0001DA9 -19-08SEP04-1/2

Pressing the switch (A) for the third time will result in the total cutterhead operating hours value being displayed (total symbol (E) and hour units are displayed). Successively pressing the statistic switch (F) at this time will display the statistics for this total (liters per hour and absolute fuel consumption).

Pressing the switch (A) for the fourth time will result in the current fuel consumption per hour value being displayed (liter and hour units are displayed).

NOTE: Pressing the statistic switch (F) at this time will not display statistics (see table above).

Pressing the switch (A) for the fifth time will turn off the cutterhead operating hours display. When the cutterhead operating display is turned off, the digital display line (B) will no longer display cutterhead operating hours, and the associated icons will no longer be displayed.

The default display format for cutterhead operating hours is HHHH:MM.

OUZXMAG,0001DA9 -19-08SEP04-2/2
