Use of Transmission Oil

Capacity: 7 L (1.85 U.S. gal)

NOTE: Oil level may be 10 mm (0.4 in.) below level bore.

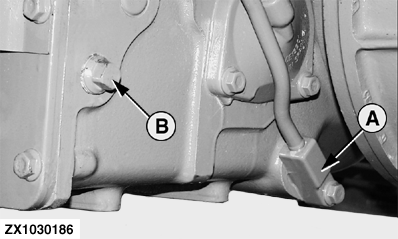

A-Oil Drain Plug
B-Check Plug

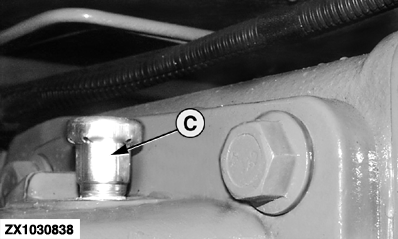

C-Filler and Bleed Plug

OUZXMAG,0001DAD -19-08SEP04-1/8

Capacity (each final drive): 8.5 L (2.24 U.S. gal)

A-Filler / Breather Plug
B-Level Plug
C-Drain Plug

OUZXMAG,0001DAD -19-08SEP04-2/8

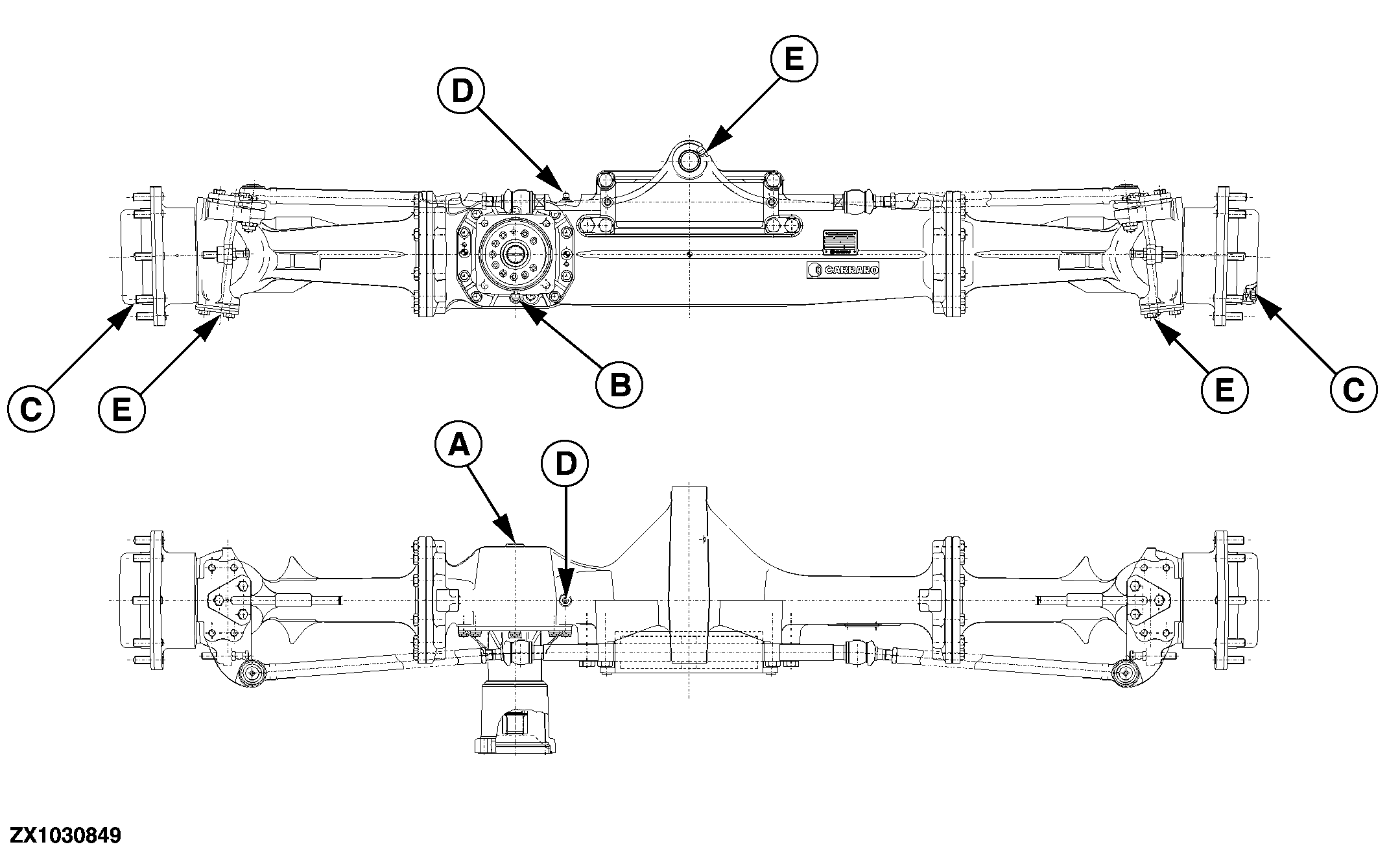

A-Differential Oil Filling and Level Plug

B-Differential Oil Drain Plug
C-Reduction Gear Level, Filling and Drain Plug

D-Differential Oil Breather

E-Greasing Points

OUZXMAG,0001DAD -19-08SEP04-3/8

Differential

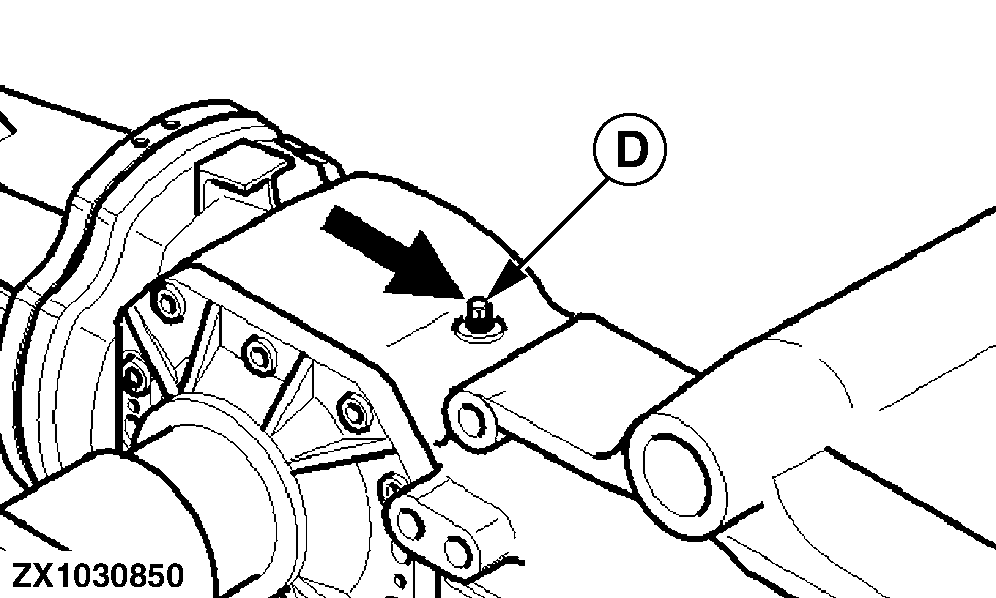

Before draining the oil from axle housing, use oil breather (D) to release possible internal pressure.

D-Differential Oil Breather

OUZXMAG,0001DAD -19-08SEP04-4/8

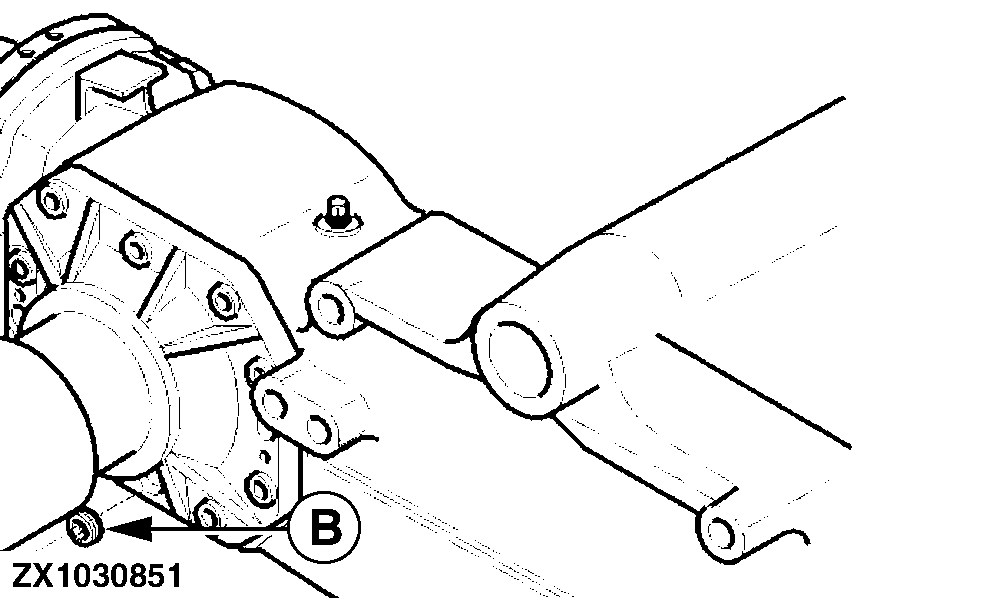

To drain the oil remove oil drain plug (B). Clean oil drain plug (B) and tighten it to the specified torque.

Specification

B-Differential Oil Drain Plug

OUZXMAG,0001DAD -19-08SEP04-5/8

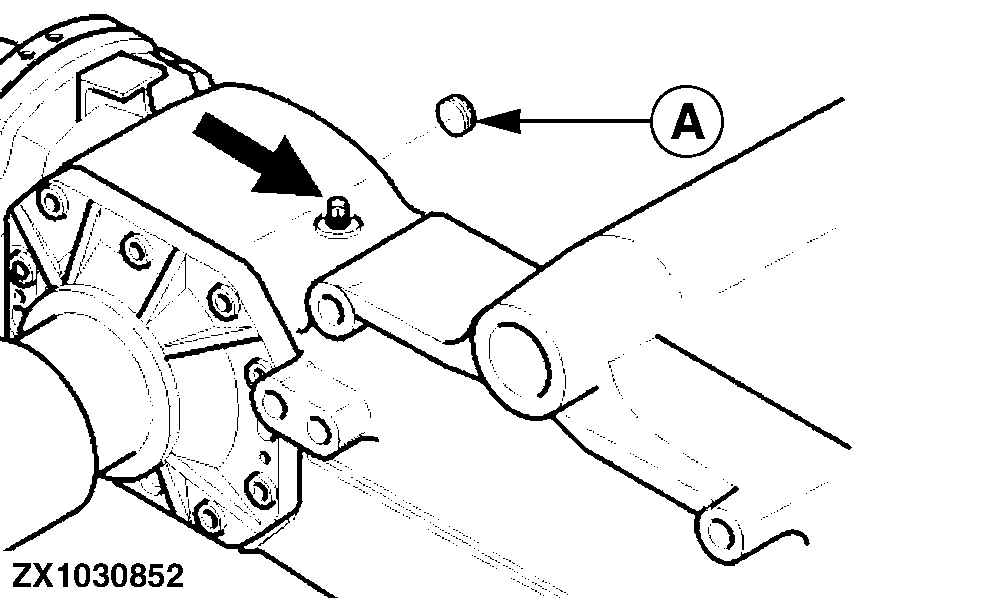

Fill oil up to the bottom of hole at filling and level plug.

Wait to allow the oil to flow through the axle. Check oil level and add to the specified level if necessary.

Tighten differential oil filling and level plug (A) to the specified torque.

Specification

A-Differential Oil Filling and Level Plug

OUZXMAG,0001DAD -19-08SEP04-6/8

Reduction Gear

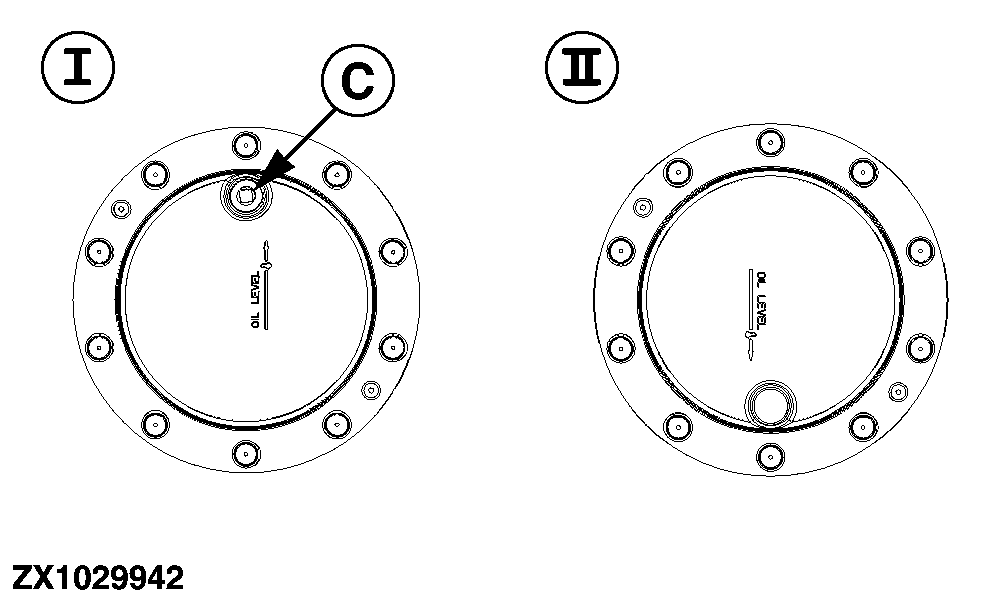

Before draining oil from reduction gear rotate the wheel end so that plug (C) is at the highest position (I) and partially unscrew plug (C) to release possible pressure.

Rotate the reduction gear so that the plug (C) is toward the ground (II).

Remove plug and drain the oil.

C-Reduction Gear Level, Filling and Drain Plug

OUZXMAG,0001DAD -19-08SEP04-7/8

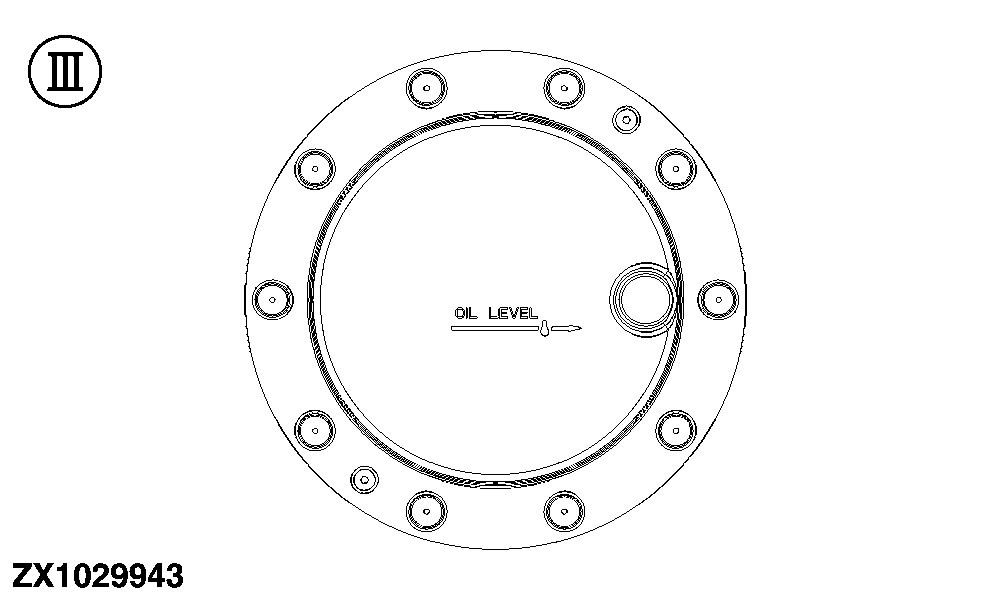

Rotate the reduction gear so that the "oil level" line is parallel to the ground (III).

Fill oil up to the bottom of hole at plug.

Tighten plug to the specified torque.

Specification

OUZXMAG,0001DAD -19-08SEP04-8/8
