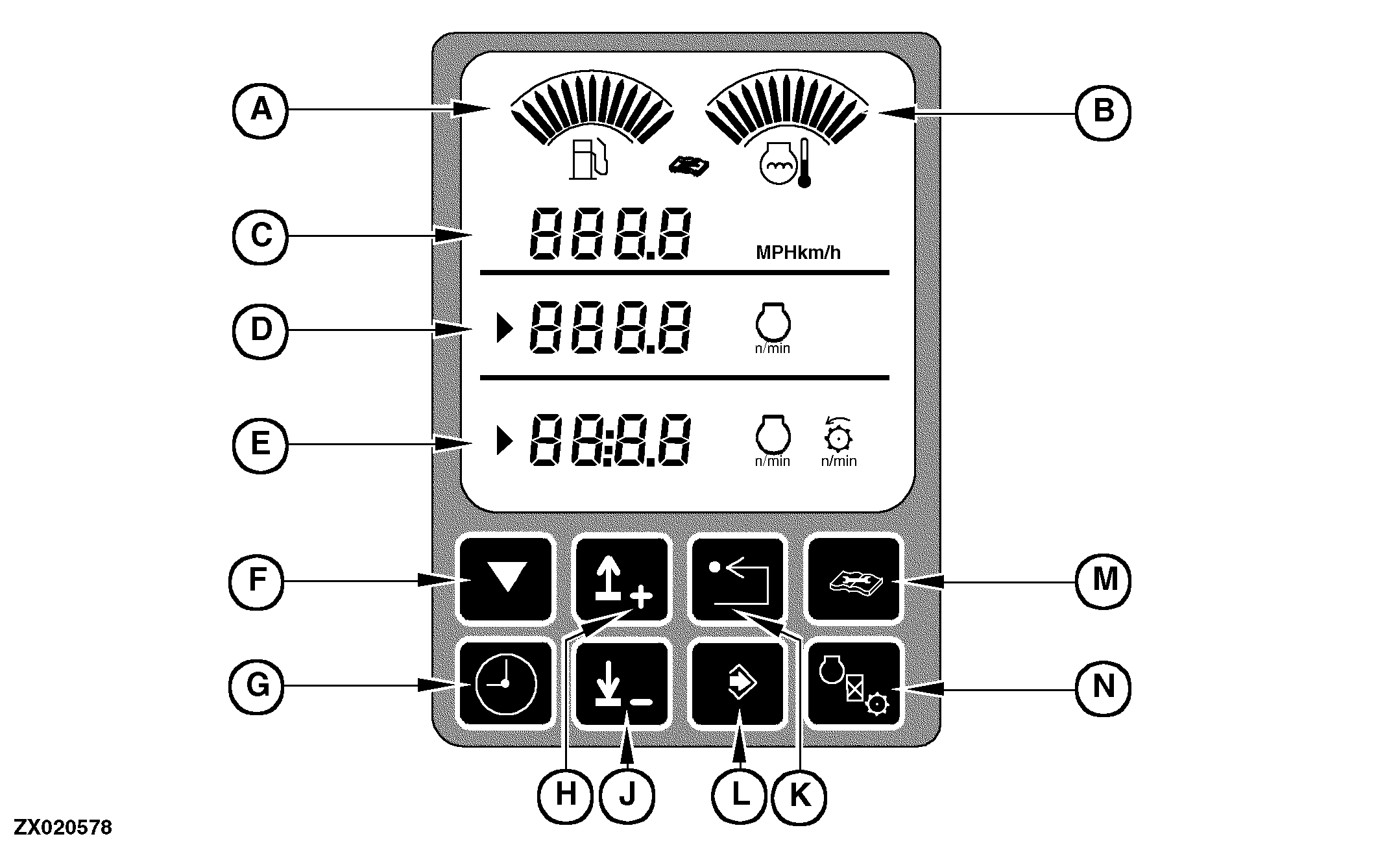

A-Fuel Gauge
B-Engine Coolant Temperature Gauge
C-Top Line - Ground Speed
D-Middle Line - Engine Speed

E-Bottom Line - Cutterhead Speed/Engine load
F-Calibration Switch
G-Clock Key

H-Up Arrow Switch
J-Down Arrow Switch
K-Back Arrow Switch
L-Enter Switch

M-Diagnostic Switch
N-Key For Engine Operating Hours And Cutterhead Operating Hours

At power-up, all display segments are turned on for a period of two seconds. After the two-second period, select which of the following data shall be displayed, and where:

• Engine speed
• Cutterhead speed
• Time (clock)

On 7200 to 7700 Forage Harvesters: Whenever necessary, the real time engine load can be displayed at bottom line (E) instead of the cutterhead speed.

To display either the engine load or the cutterhead speed use the following address:

• Engine Load or Cutterhead Speed on Display - Address RCP 104

NOTE: For detailed calibration information see Section "Calibration Procedures" at the appropriate addresses.
