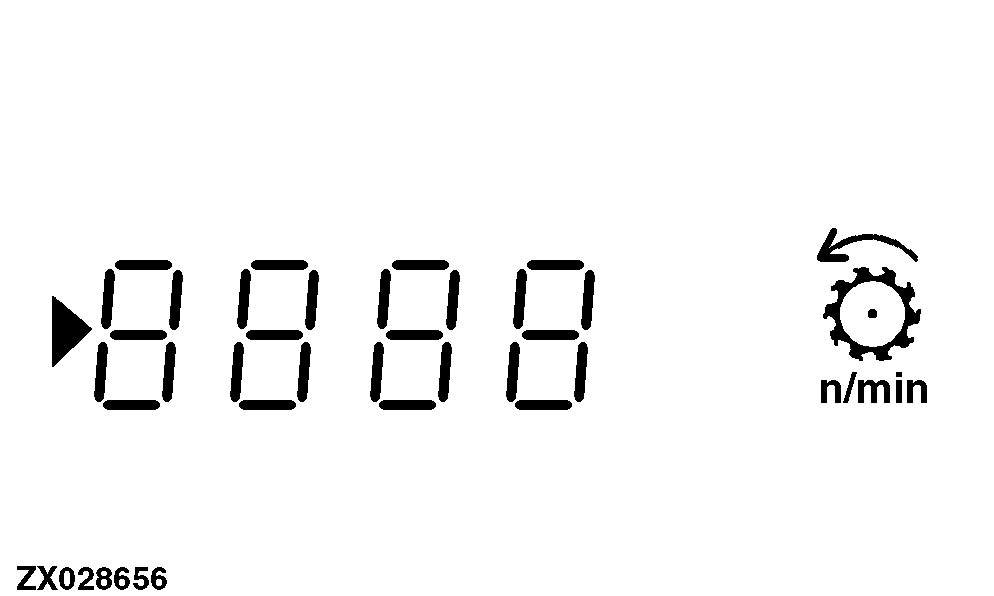

Cutterhead Speed - Third (Bottom) Line

The bottom line displays the cutterhead speed (default information) along with the the cutterhead speed icon.

Cutterhead speed - XXX0 (rounded off to the nearest ten)

The bottom line displays also:

1. Cutterhead operating hours in the following format: XXXX (rounded off to the nearest full hour)
2. Time of day in the following format: - HHMM

On 7200 to 7700 Forage Harvesters: Whenever necessary, the real time engine load can be displayed at bottom line instead of the cutterhead speed. In this case the cutterhead speed icon will not be displayed.

To display either the engine load or the cutterhead speed use the following address:

  • Engine Load or Cutterhead Speed on Display - Address RCP 104

NOTE: For detailed calibration information see Section "Calibration Procedures" at the appropriate addresses.

ZX028656
