Raise / Lower Discharge Spout Switch

Raising or lowering discharge spout is only possible with engine running and road safety switch in field position.

Press auto spout rotate switch (B) to enable or disable the auto spout rotate function (see "Auto Spout Rotate Switch" in this section).

To setup the spout raise/lower time, manually enter the following address (see On-Board Diagnostic addresses):

• ARC 111-Default time setting: 20 seconds (range: 0 to 30 seconds)

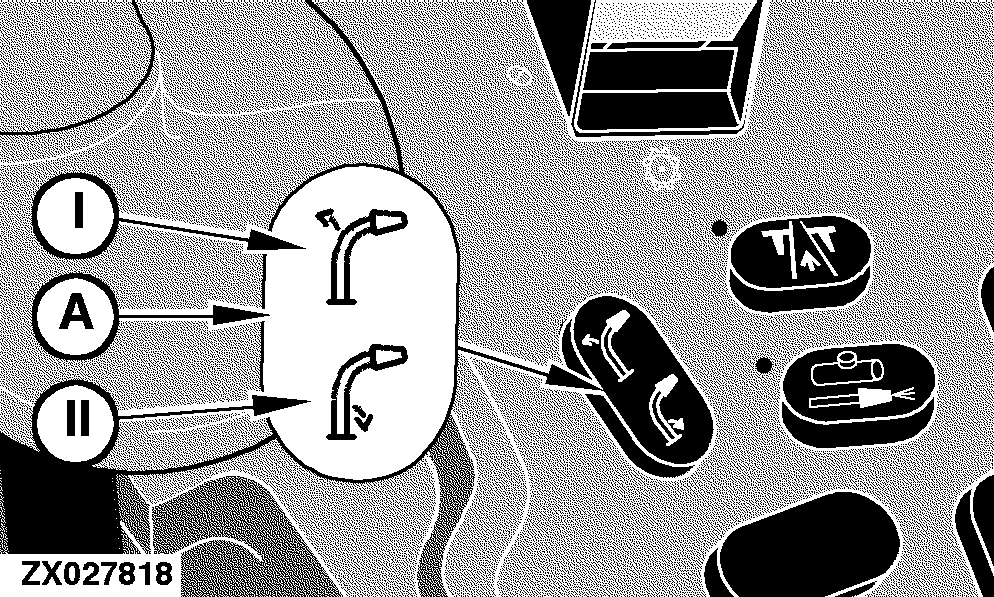

A-Raise / Lower Spout Switch

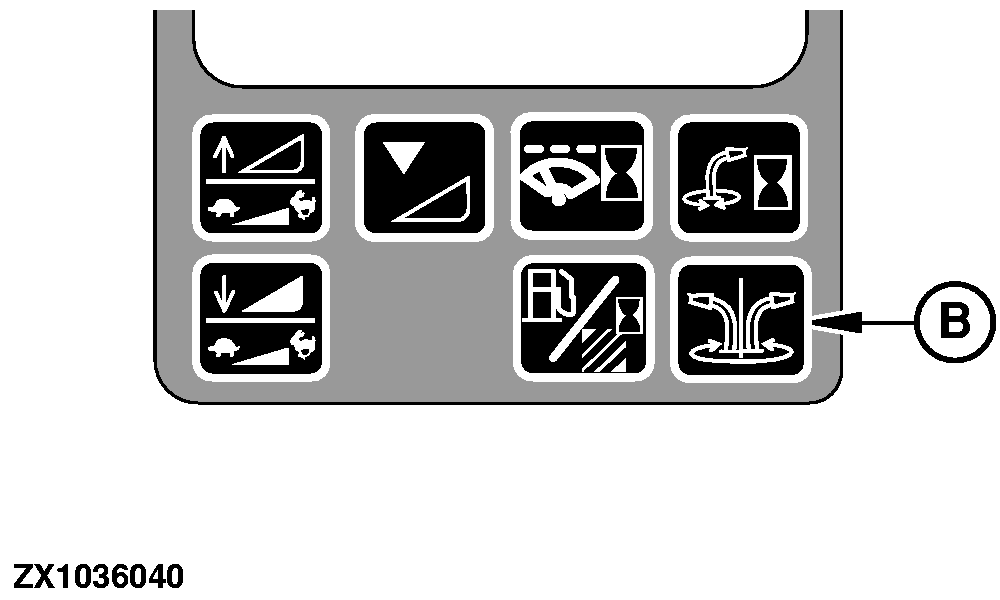

B-Auto Spout Rotate Switch
I-Raise Discharge Spout Symbol
II-Lower Discharge Spout Symbol

OUZXMAG,0001DB0 -19-08SEP04-1/1
