Securing Header Locking Pins

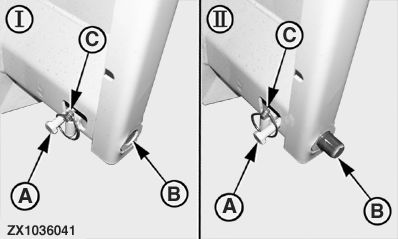

IMPORTANT: Make sure that attaching frame locking pin bolts (A) of both locking pins (B) are securely locked by means of the quick lock pin (C) in storage (I) position AND attached (II) positions as shown!

A-Locking Pin Bolt
B-Locking Pin
C-Quick Lock pin
I-Storage Position
II-Attached Position

OUZXMAG,0001DB5 -19-09SEP04-1/1
