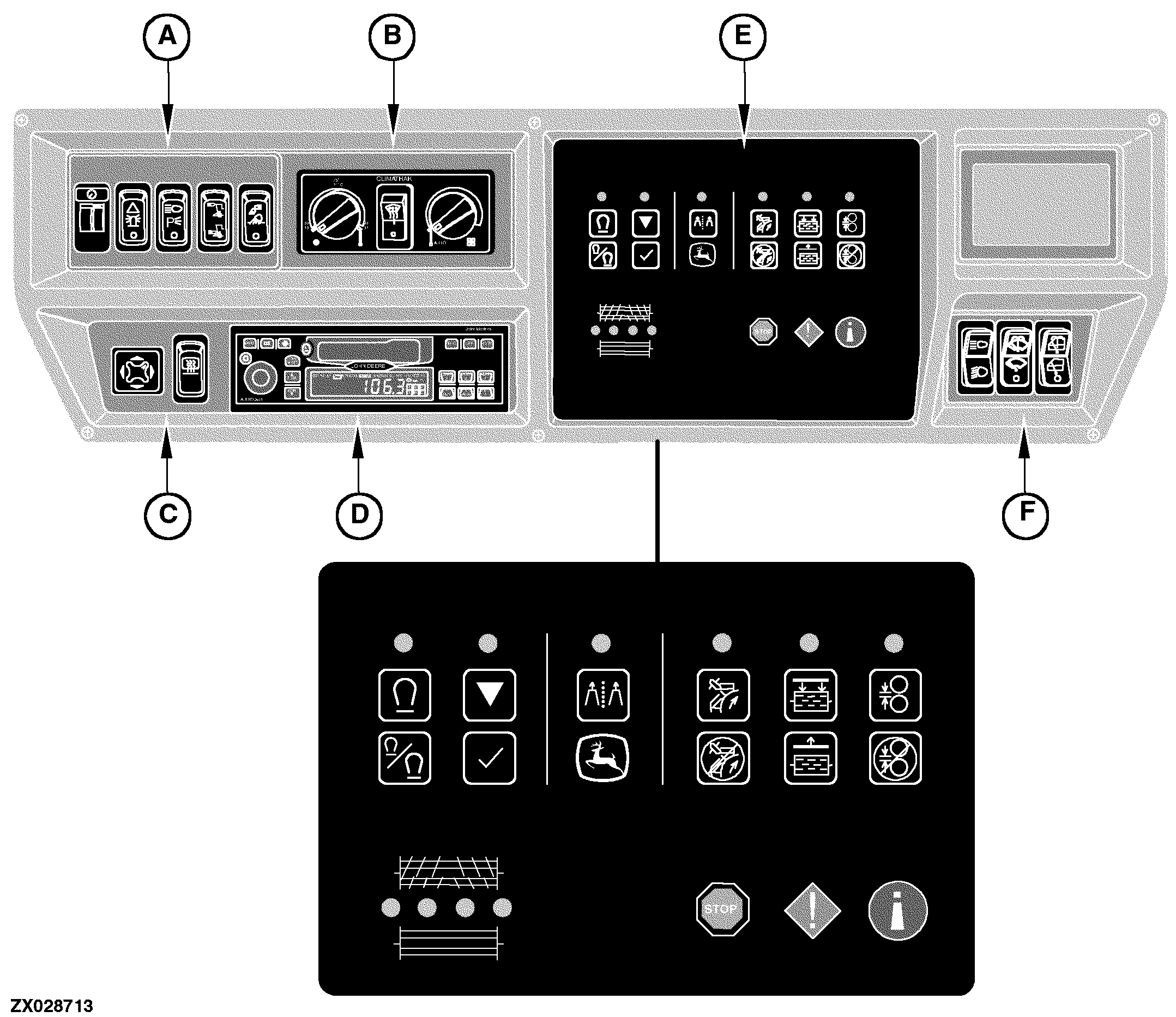

A-Light Switches and Hazard Warning Lights Switch
B-CLIMATRAK™ Control Switches

C-Electrically Adjustable Outside Mirrors and Mirror Heater (optional)
D-Radio / Citizen Band (Special Equipment)

E-Automatic Functions Control

F-High / Low Beam, Windshield Wiper and Washer, Side Wiper and Washer Switches

NOTE: Dimensions for the installation of (D) are standard ones: 182 mm (7.17 in.) wide, 53 mm (2.1 in.) high.

CLIMATRAK is a trademark of Deere & Company

OUZXMAG,0001DD3 -19-20SEP04-1/1
