Adjust the Feed Plate On the Kernel Processor

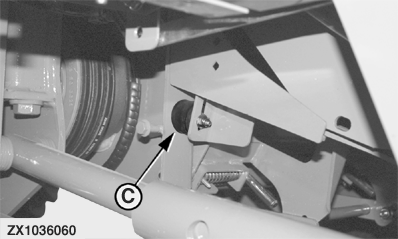

Once the spiral floor has been adjusted (see the "Cutterhead, Drive, Guards, Covers" Section), set the feed plate (A) to the highest possible position. To do this, slacken off screws (B), push the feed plate (A) up by hand, until damper (C) is slightly crushed and then retighten the screws.

IMPORTANT: If damper (C) is not crushed while the feed plate is in its highest position, relocate damper (C) accordingly.

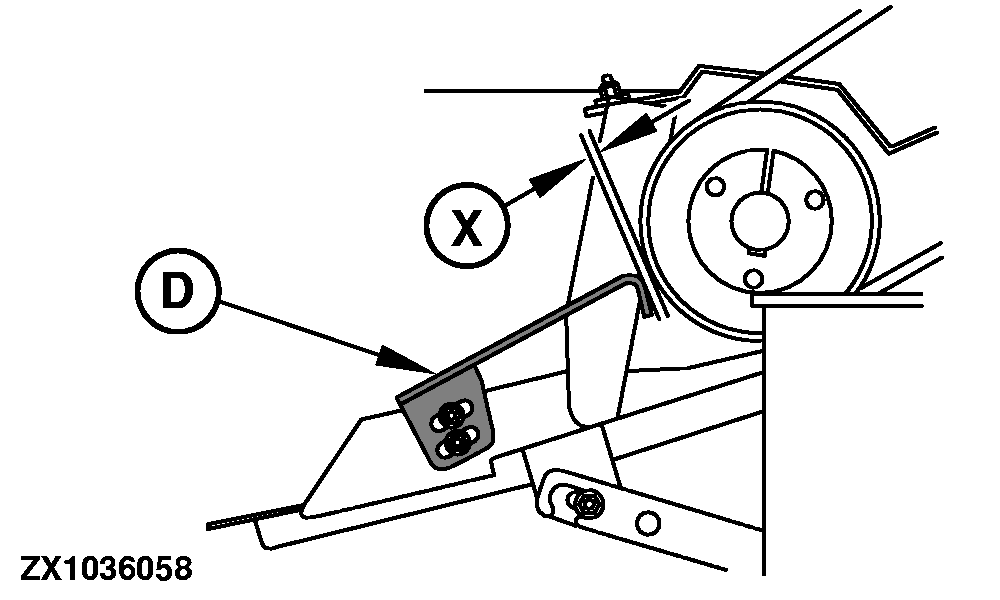

Make sure that guide (D) is at specified dimension from drive belts. If not, readjust guide position as necessary.

Specification

Guide to Drive Belts -Distance 3.5 to 6.5 mm (0.14 to 0.26 in.)


A-Feed Plate
B-Fixing Screws
C-Damper
D-Guide
X-3.5 to 6.5 mm (0.14 to 0.26 in.)

ZX1030959
ZX1036060
ZX1036058

OUZXMAG,0001DE4 -19-20SEP04-1/1
