Completing Conversion

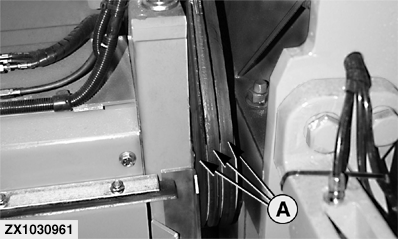

Install drive belts (A).

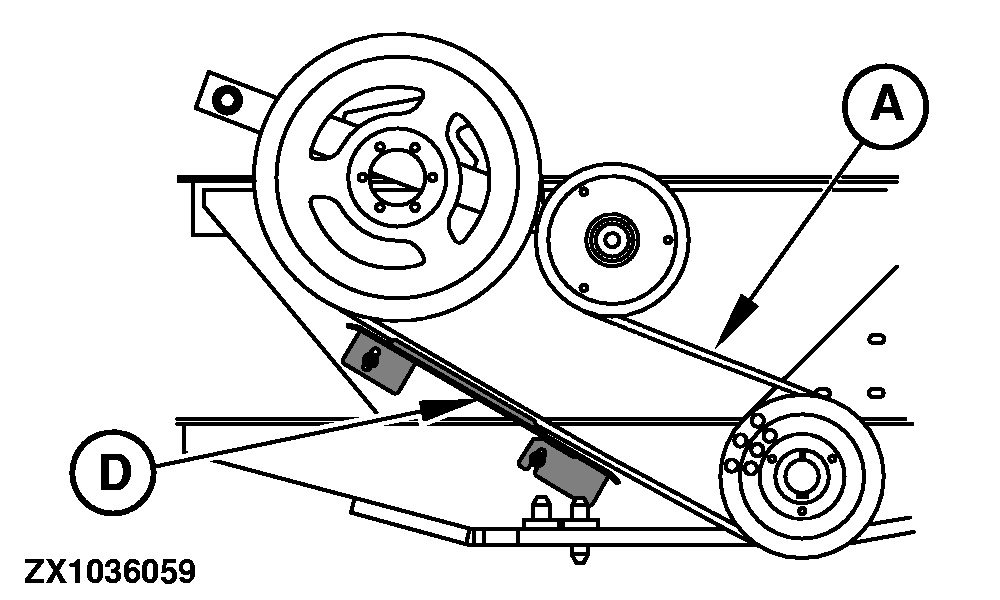

IMPORTANT: Make sure that drive belts (A) are correctly arranged on guide (D).

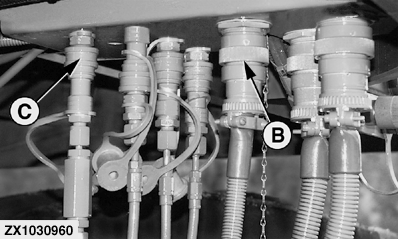

Connect connector (B) (only with electrical adjustment of kernel processor rolls).

Connect inlet line (C) leading to distributor of Automatic Lubrication system (depending on equipment).


A-Kernel Processor Drive Belts
B-Connector (Kernel Processor Electrical System)
C-Quick Coupler (Kernel Processor Automatic Lubrication)
D-Guide
