Adjust the Feed Plate On the Power Chute

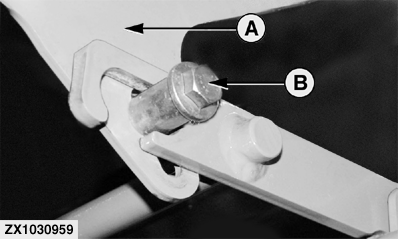

Once the spiral floor has been adjusted (see the "Cutterhead, Drive, Guards, Covers" Section), set the feed plate (A) to the highest possible position. To do this, slacken off screws (B), push the feed plate (A) up by hand and then retighten the screws.

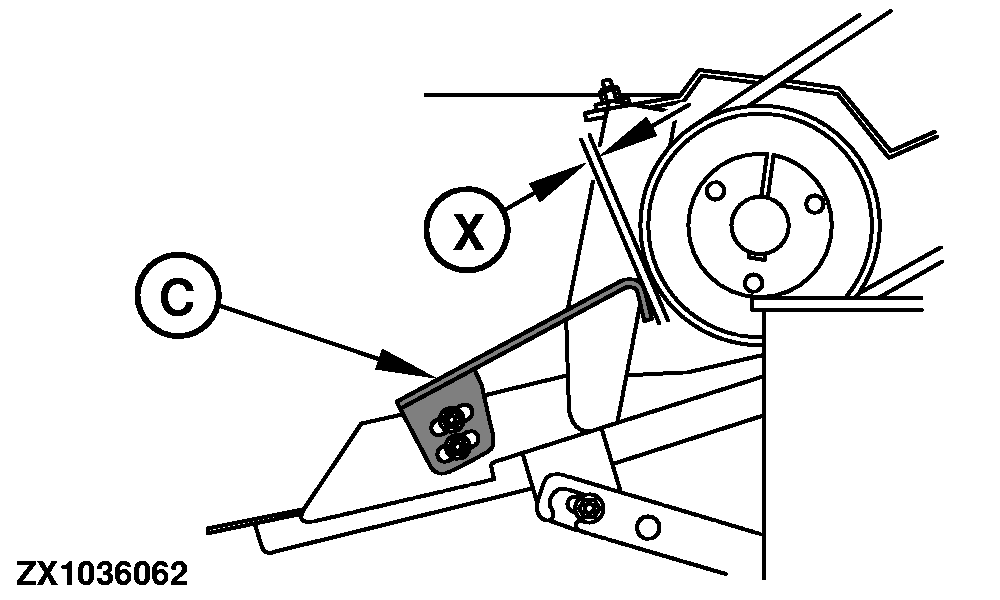

Make sure that guide (C) is at specified dimension from drive belts. If not, readjust guide position as necessary.

Specification

A-Feed Plate
B-Fixing Screws
C-Guide
X-3.5 to 6.5 mm (0.14 to 0.26 in.)
