Drive Belts

IMPORTANT: Replace drive belts as complete set only.

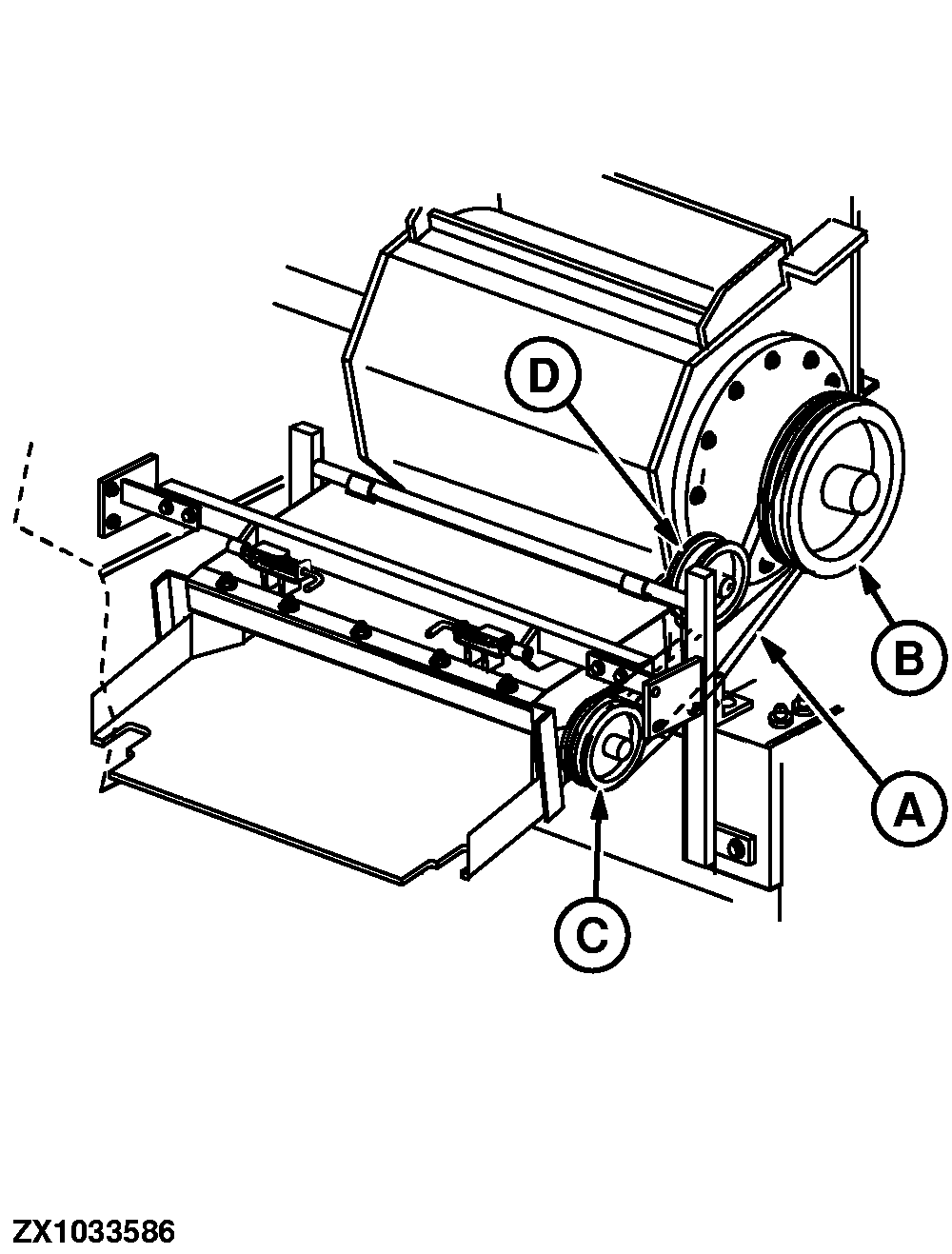

Place drive belts (A) on pulley.

Use a straight edge to align pulley (B) until it is flush with pulley (C).

Tighten clamping hub screws on pulley (B).

Place idler roll (D) on belt.

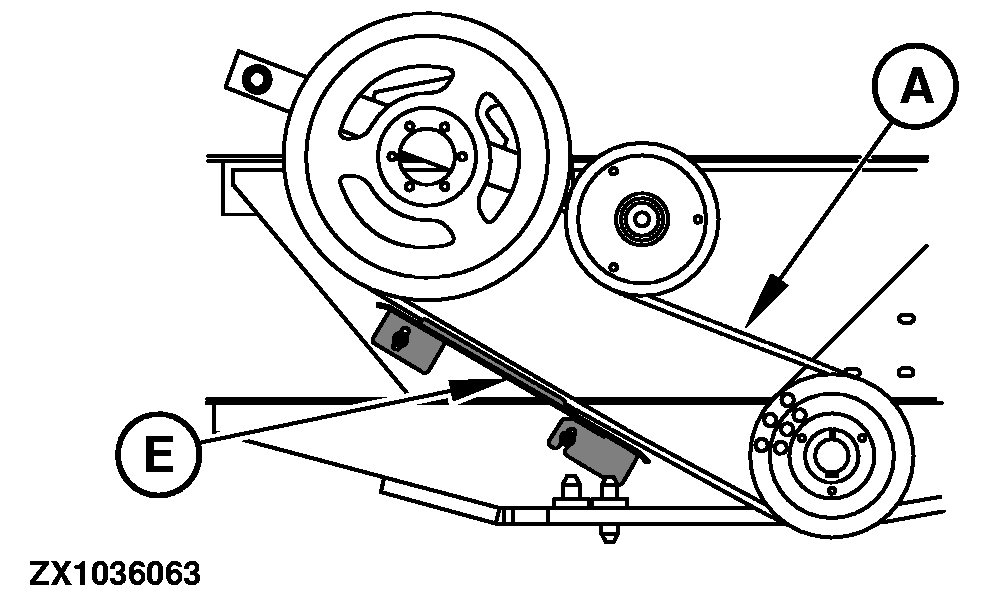

IMPORTANT: Make sure that drive belts (A) are correctly arranged on guide (E).

A-Drive belts
B-Pulley (discharge fan)
C-Pulley (power chute)
D-Tensioner roll
E-Guide

OUZXMAG,0001DE7 -19-22SEP04-1/1
