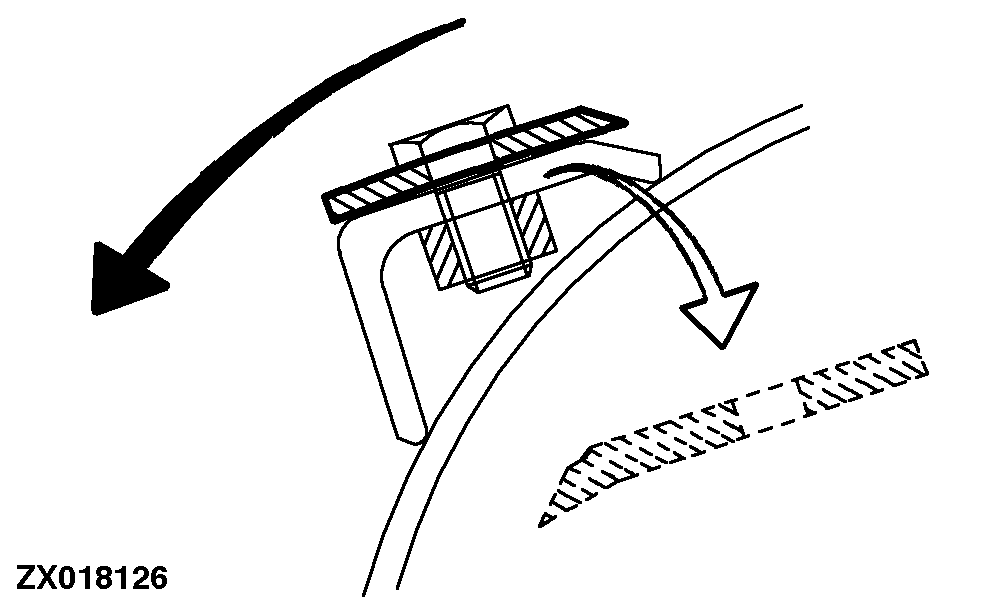

Removing Cutterhead Knife

For increasing length of cut and protecting knife bed from damage loosen attaching screws remove knives remove and reverse clamp bars and tighten attaching screws to specified torque.

ZX018126

OUZXMAY,0000300 -19-01NOV03-1/1
