Harvesting Unit On / Reverser Switch
Engaging feed rolls, harvesting unit and rotary crop dividers (option) is only possible if:
-
Engine running
-
Road safety switch in field operating mode
-
Feed roll housing closed
-
Main clutch engaged (for feedroll forward operation only)
-
Four-speed LOC only:
Oil pressure switch on reverser motor closed, pressure below 300 kPa (3 bar) (44 psi)
Operating Switch (A)
-
To engage the feed rolls and the harvesting unit forward rotation press symbol (I) at switch (A) twice.
-
To reverse the feed rolls press and hold symbol (II) at switch (A).
-
Press symbol (II) at switch (A) three times and hold to reverse the feed rolls and the harvesting unit - without cutterhead running. (Engine needs to run and field mode applied).
IMPORTANT:
After reversing feed rolls on forage harvesters with kernel processor, wait until the cutterhead has come to a standstill before reengaging the feed rolls and the harvesting unit.
NOTE:
Four-speed LOC only:
When operating forage harvester without metal detector, metal detector switch (on length-of-cut transmission) and metal detector must be in "Off" position.
|

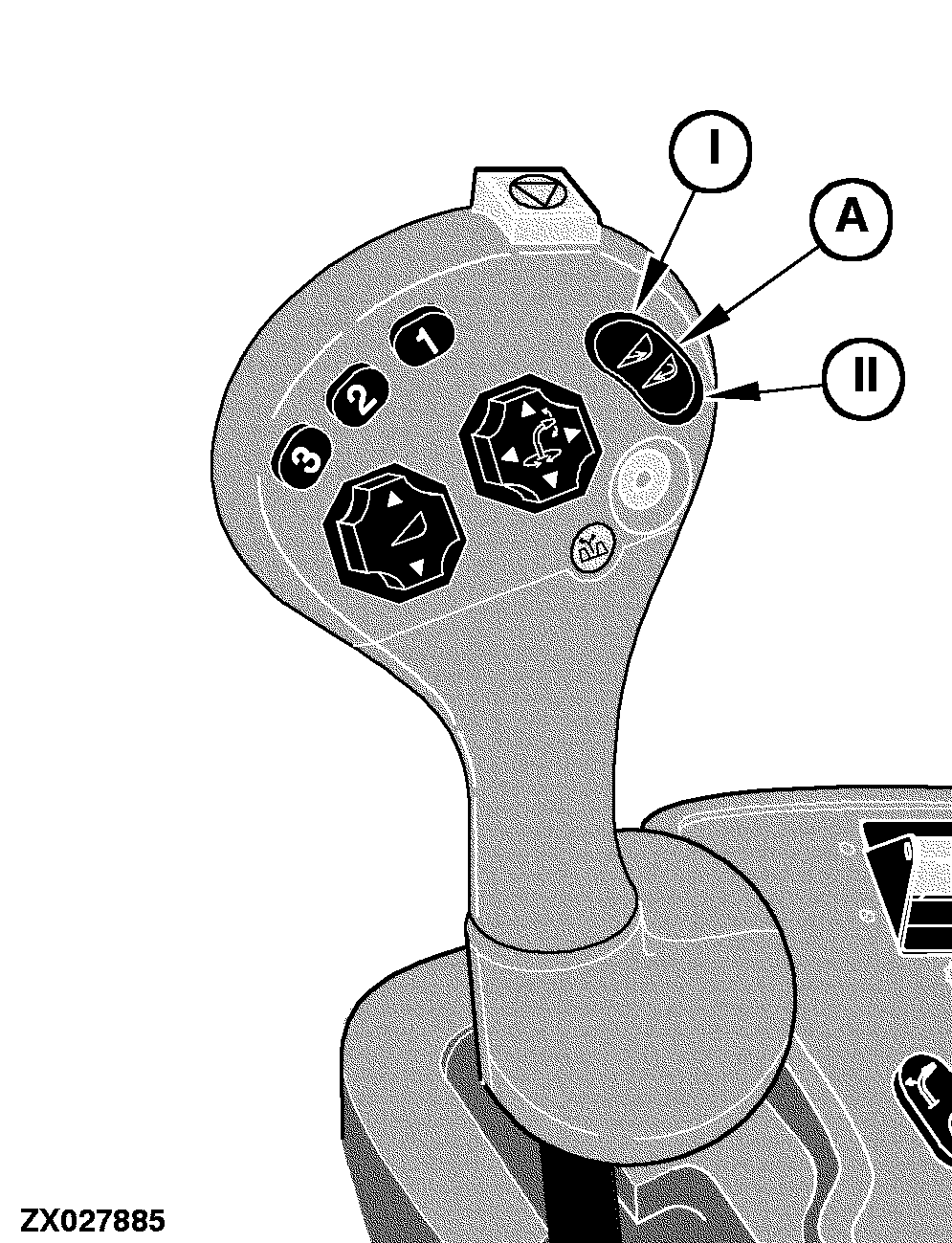

A-Harvesting Unit On / Reverser Switch
I-To Engage Feed Rolls And Harvesting Unit
II-Reverse Feed Rolls And Harvesting Unit
|
