Draining Hydraulic Oil

Drain hydraulic system oil after every 500 hours of operation or at the end of the harvesting season (whichever occurs first).

    Only change oil when:

  • Harvesting unit is lowered
  • Reel is lowered
  • Spout is lowered

Drain oil into a suitable container.

Tighten drain plugs (A) and (B) securely after oil has been drained.


A-Drain Plug, Hydraulic Oil Tank
B-Drain Plug, Bevel Gear Drive

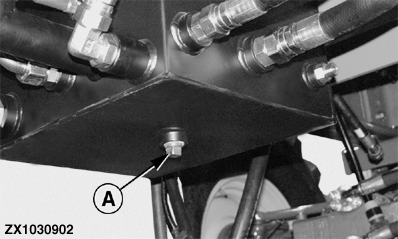

ZX1030902

Drain Plug, Hydraulic Oil Tank

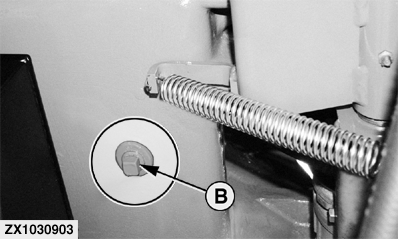

ZX1030903

Drain Plug, Bevel Gear Drive

OUZXMAY,0000397 -19-10FEB02-1/1
