Fuel Gauge

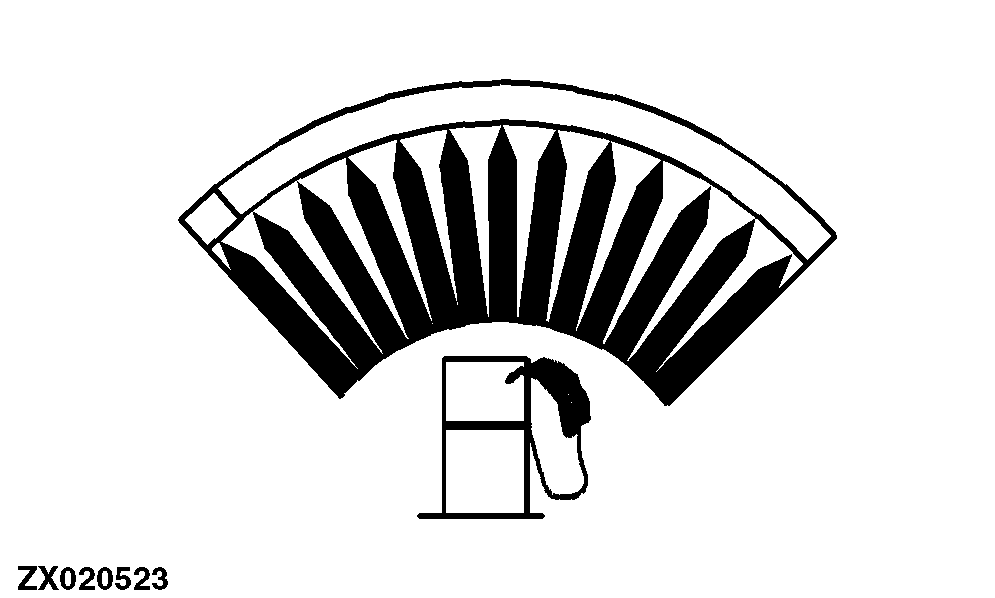

Fuel level is indicated by a 13-element analog simulation at the top left corner of the monitor screen. The left-hand element indicates that the fuel tank is empty, and the right-hand one indicates that the tank is full.

With key on, fuel gauge will move to right showing amount of fuel in tank.

ZX020523

OUZXMAY,00003BD -19-01NOV03-1/2

When only 11% of fuel is left in tank, the fuel level indicator light will come on.

NOTE: Fuel tank capacity:

  • 700 L (185 U.S. gal.) (Standard for Models 7200, 7300)

  • 1100 L (290 U.S. gal.) (Standard for Models 7400, 7500, 7700, 7800; Option for Models 7200, 7300)

ZX000340

OUZXMAY,00003BD -19-01NOV03-2/2
