Number Of Rows Switch

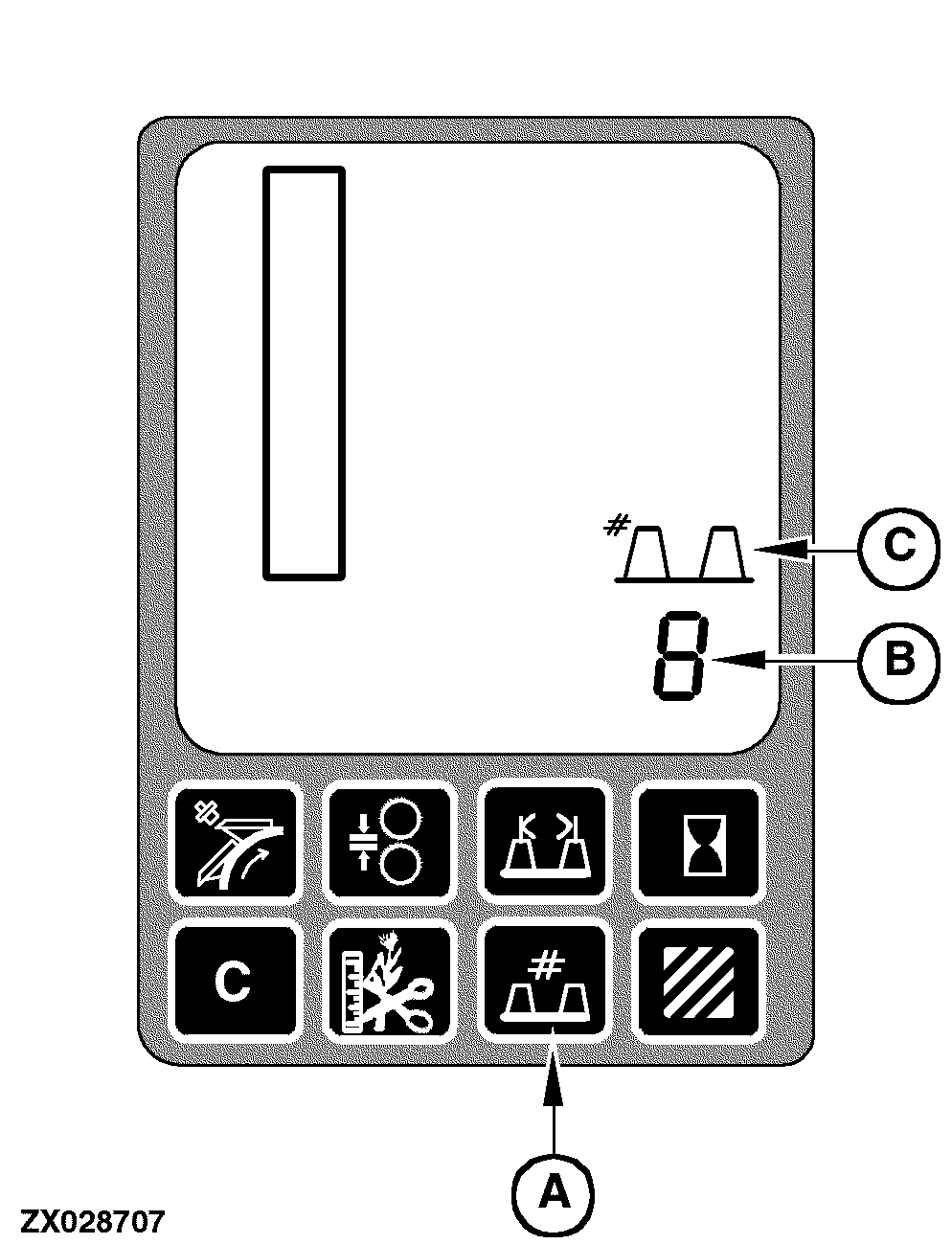

To display the current number of rows information, press the number of rows switch (A). After this switch is pressed, the number of rows value will be displayed on the digital display line (B) and the number of rows icon (C) will also be displayed. This information will be displayed to the nearest ones.

The number of rows value will be displayed for a maximum of 10 seconds after the number of rows switch (A) has been released or until another switch has been pressed. When 10 seconds have elapsed or another switch has been pressed, the display will return to the default information or the information that is associated with the pressed switch. Additionally, the number of rows icon (C) will no longer be displayed.

  • The minimum number of rows is 1
  • The maximum number of rows is 20
  • The default number of rows is 6

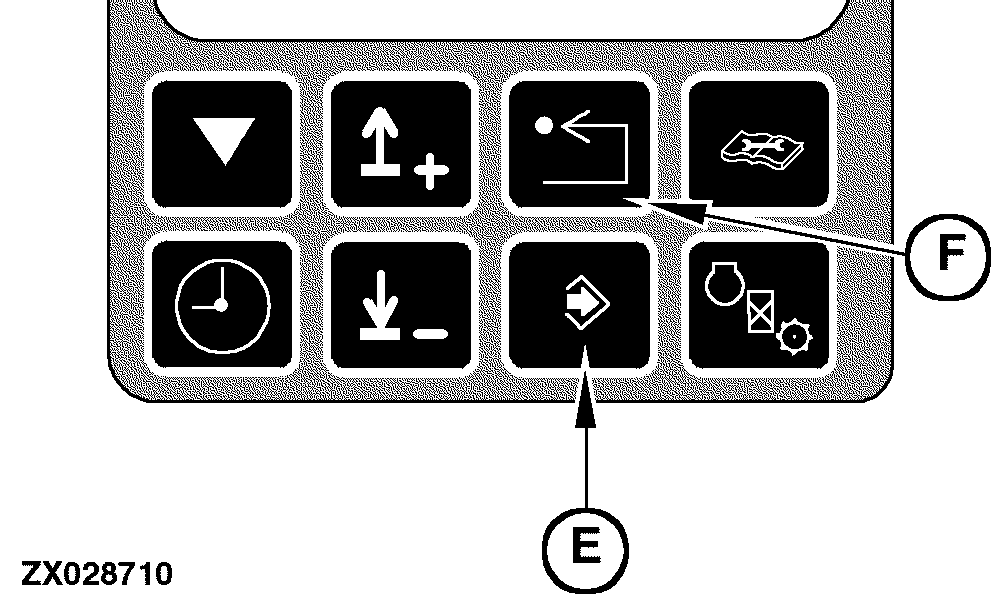

While this information is being displayed, change this setting by using the input control knob (D) located on the armrest. While rotating the input control knob (D), the number of rows information will change on the digital display line (B). This will be the desired number of rows. Store this new setting permanently by momentarily pressing the enter switch (E) located on the digital tachometer.

If this new setting shall not be permanently stored, press the back arrow switch (F). After the back arrow switch is pressed, the previously stored number of rows will be displayed on the digital display line (B).


A-Number Of Rows Switch
B-Digital Display Line
C-Number Of Rows Icon
D-Input Control Knob
E-Enter Switch
F-Back Arrow Switch

ZX028707
ZX028693
ZX028710

OUZXMAY,00003CD -19-13MAY02-1/2

Header Width Setting

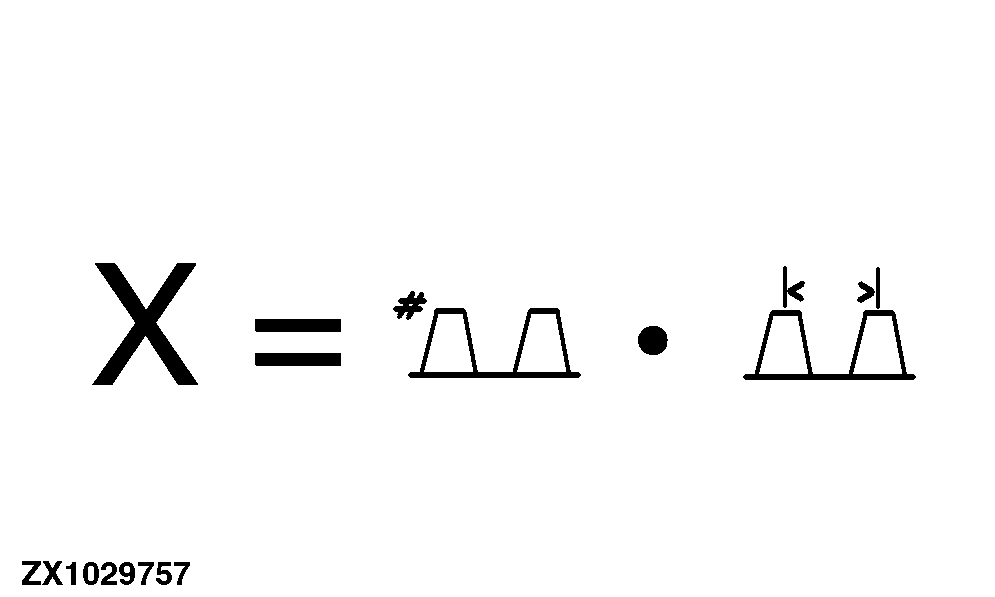

The header width is the result of the multiplication of row width and number of rows.

Header / swath width (X) = Row width multiplied with number of rows

Example for 4 m Pick Up:

4 m = 1 m or 100 cm (row width) x 4 (number of rows)

Example for 30 feet swather:

30 feet = 30 feet (row width) x 1 (number of rows)

ZX1029757

OUZXMAY,00003CD -19-13MAY02-2/2
