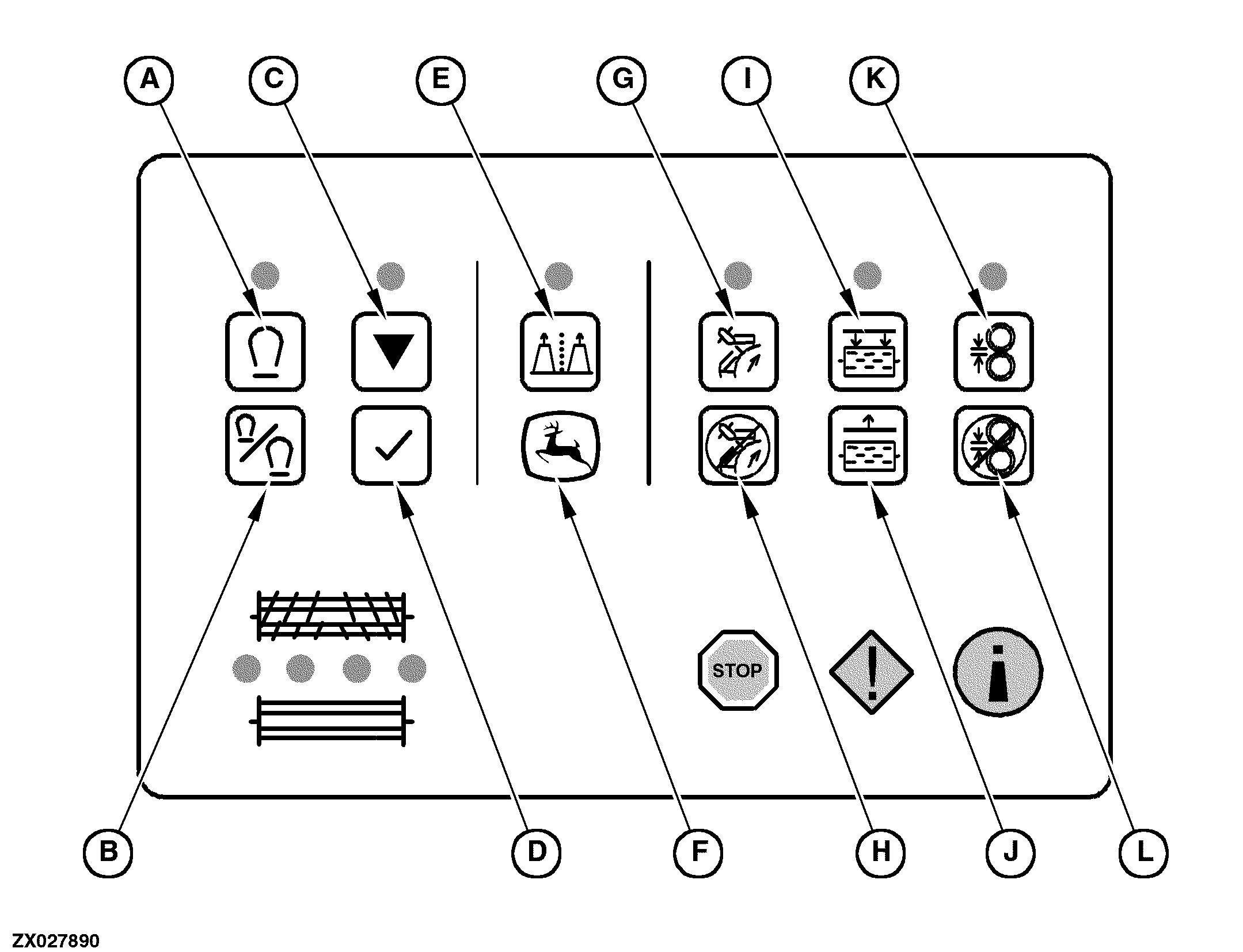

A-Metal Detector Enable Switch
B-Metal Detector Initial Threshold Calibration Switch
C-Metal Detector Calibration Switch
|
D-Metal Detector Test Switch
E-Row Guidance Enable Switch
F-Reset Switch
G-Knife Sharpen Mode Switch
|
H-Stone Home Position Switch
I-Stationary Knife Adjust Mode Switch
J-Stationary Knife Adjust Mode Abort Switch AND Manual Stationary Knife Away Mode Switch
|
K-Kernel Processor Adjust Mode Switch
L-Kernel Processor Adjust Mode Abort Switch
|

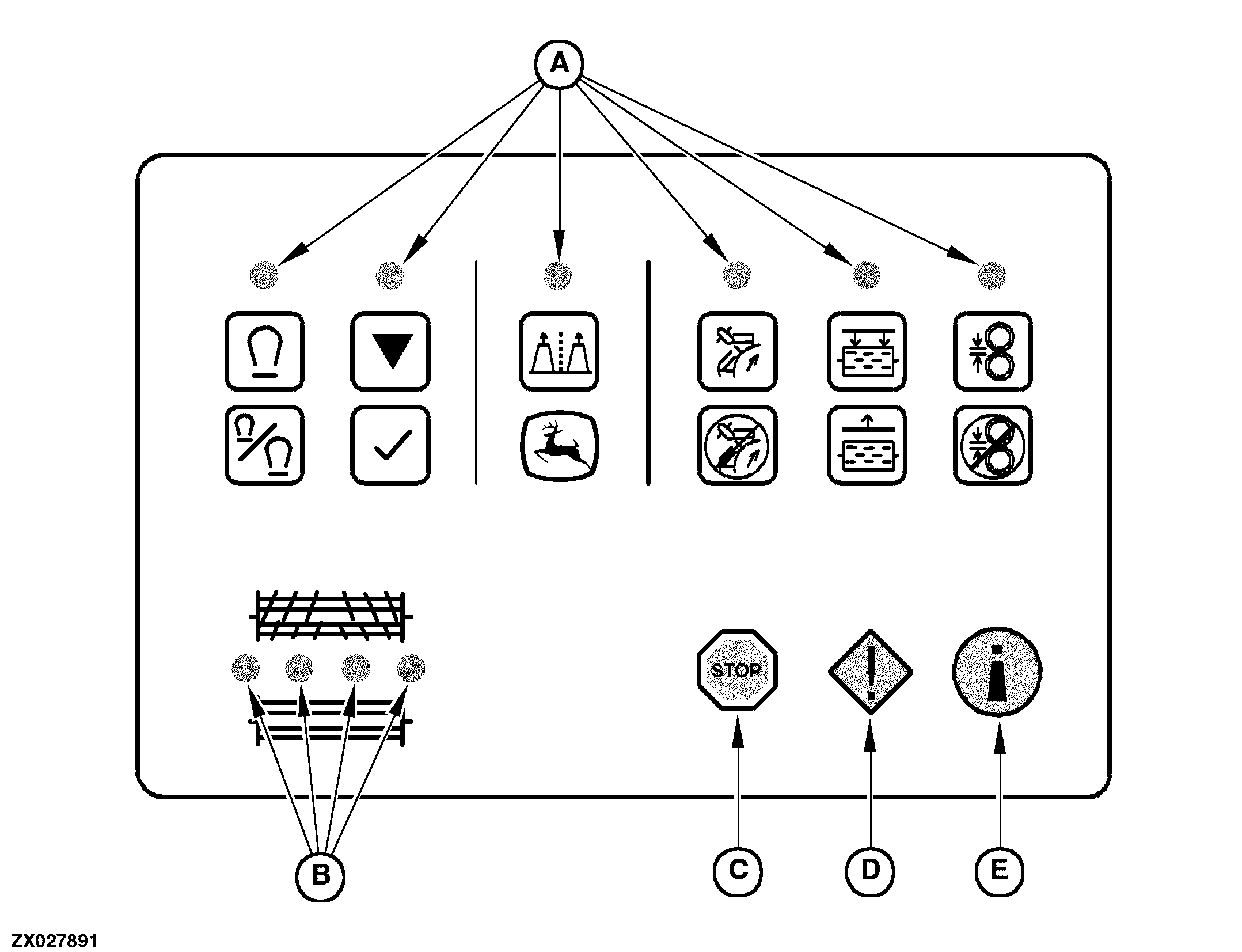

A-Function Indicator Lights: These indicate whether the respective functions or automatic functions are switched on.
B-Metal Detector Indicator Lights: Indicate approximate position of where metal has been found (if l.h. LED lights up, metal was found to the left of the track)
|
C-Red STOP Light: Lights up when an error occurs that affects vehicle or operational safety or might result in damage to the engine. The red STOP light remains on until ALL the errors have been rectified.
|
D-Amber Warning Light: The amber warning light comes on if a problem occurs that is not serious enough to require the forage harvester to stop immediately. The warning light remains on until ALL the problems have been rectified.
|
E-Fault Indicator Light: Lights up if a fault occurs. The fault indicator remains on until ALL the faults have been rectified.
|
