When Ferrous Metal is Detected - IVLOC

CAUTION: To avoid personal injury, never search for metal unless all drives are disengaged, engine and ignition switch shut off and all moving parts have stopped.

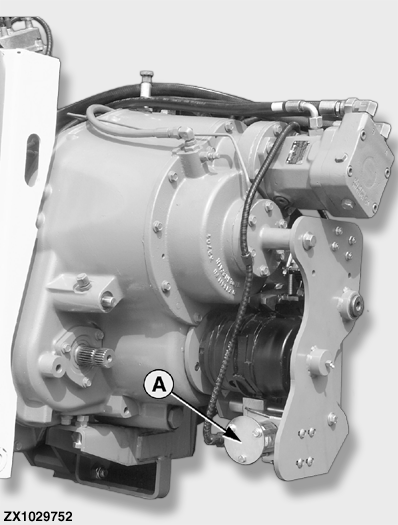

When ferrous metal is found by the metal detector, the metal detector indicator light will glow and the warning signal will be heard. The locking pawl solenoids (A) will stop the feed rolls immediately. At the same time, the IVLOC input clutch will disengage.

The IVLOC input clutch may also be disengaged by operating quick stop function of multi-function lever, stopping feed rolls and harvesting unit immediately.

OUZXMAY,000045B -19-08AUG02-1/2

Reverse the feed rolls long enough to reverse the crop out of the feed roll housing.

Disengage the main clutch.

Shut off engine and wait until all moving parts have stopped.

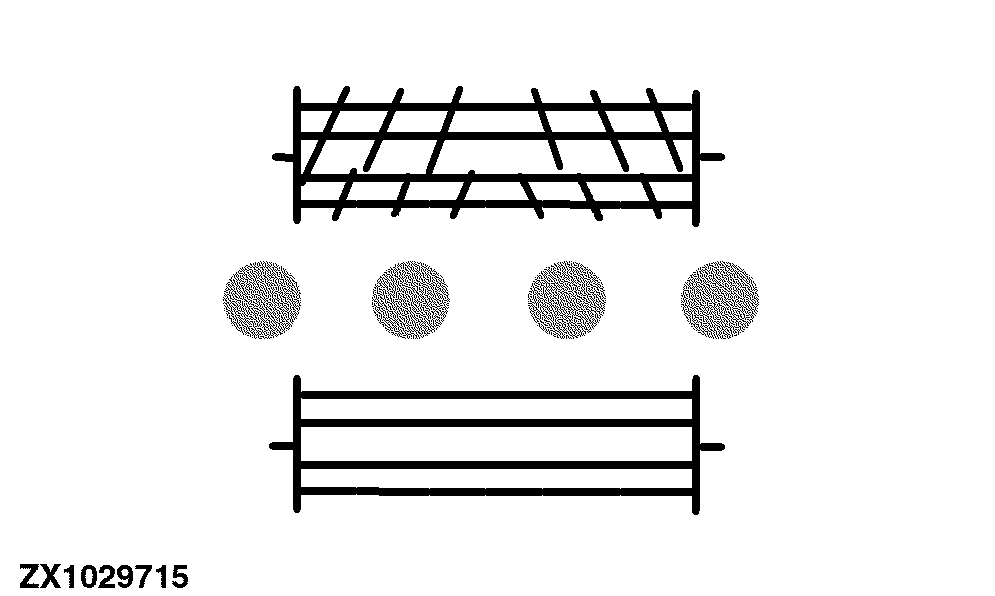

With the help of the metal location information (indicator lights) find the metal and remove it.

OUZXMAY,000045B -19-08AUG02-2/2
