Removing Fresh Air Filter and Tray

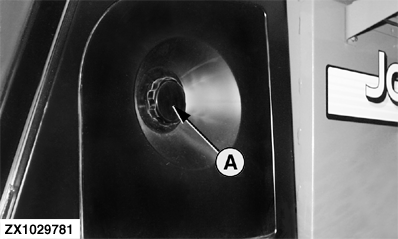

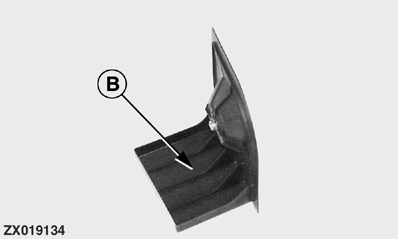

Loosen knob (A), remove cover, lift out and dump dirt tray (B) attached to cover.

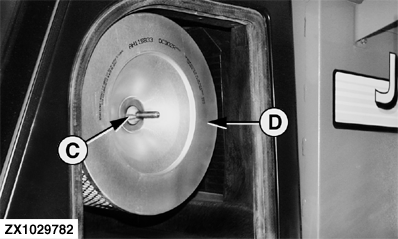

Remove wing nut (C) and pull out and clean filter (D).

Secure cover with knob.

IMPORTANT: After dirt tray contacts seal tighten knob 1 to 2 additional turns. Do not overtighten knob (A).

In dusty conditions, check every day. Normal service is 50 hours.

A-Knob
B-Dirt Tray
C-Wing Nut
D-Filter

OUZXMAY,000046E -19-14AUG02-1/1
