Cab Interior Lights

The dome light switch (C) controls the dome light (B).

The dome light switch has three positions: on (left), off (center), and automatic (right) (when the cab door is open).

NOTE: The front console and armrest console lights will be switched on with road switch (middle switch position).

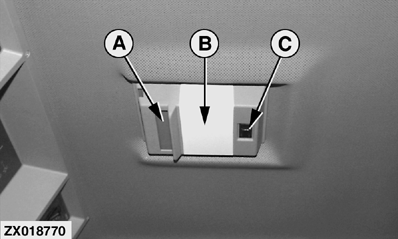

A-Front Console and Armrest Console Light
B-Dome Light
C-Dome Light Switch

OUZXMAY,0000479 -19-17AUG02-1/1
