Engine Oil Level

Before starting the engine for the first time each day:

Check engine oil level. Do not operate engine when oil level is below low mark on dipstick.

NOTE: The oil should be checked with the dipstick pushed all the way into the holder.

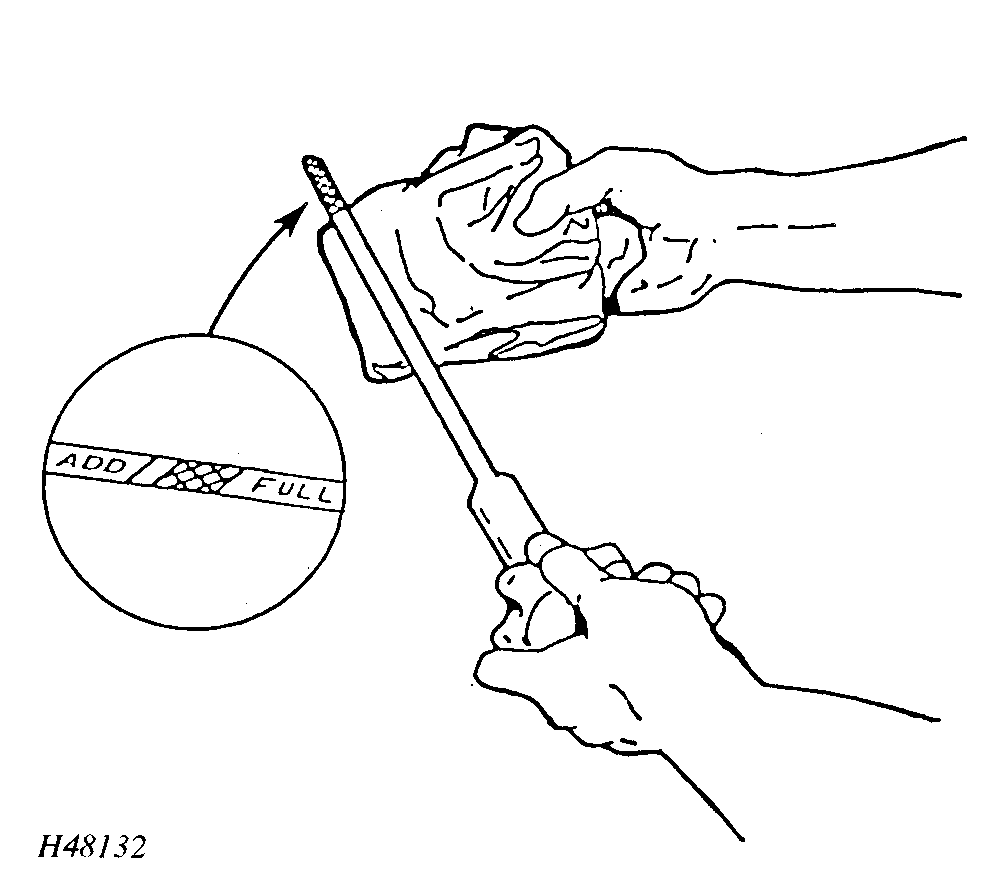

Remove dipstick (A) and check oil level. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick. If needed, add oil recommended in the "Fuel, Lubricants, Coolant and Capacities" Section.

Do not operate engine with oil level below the "ADD" mark on dipstick.

A-Dipstick

OUZXMAY,000048E -19-19AUG02-1/1
