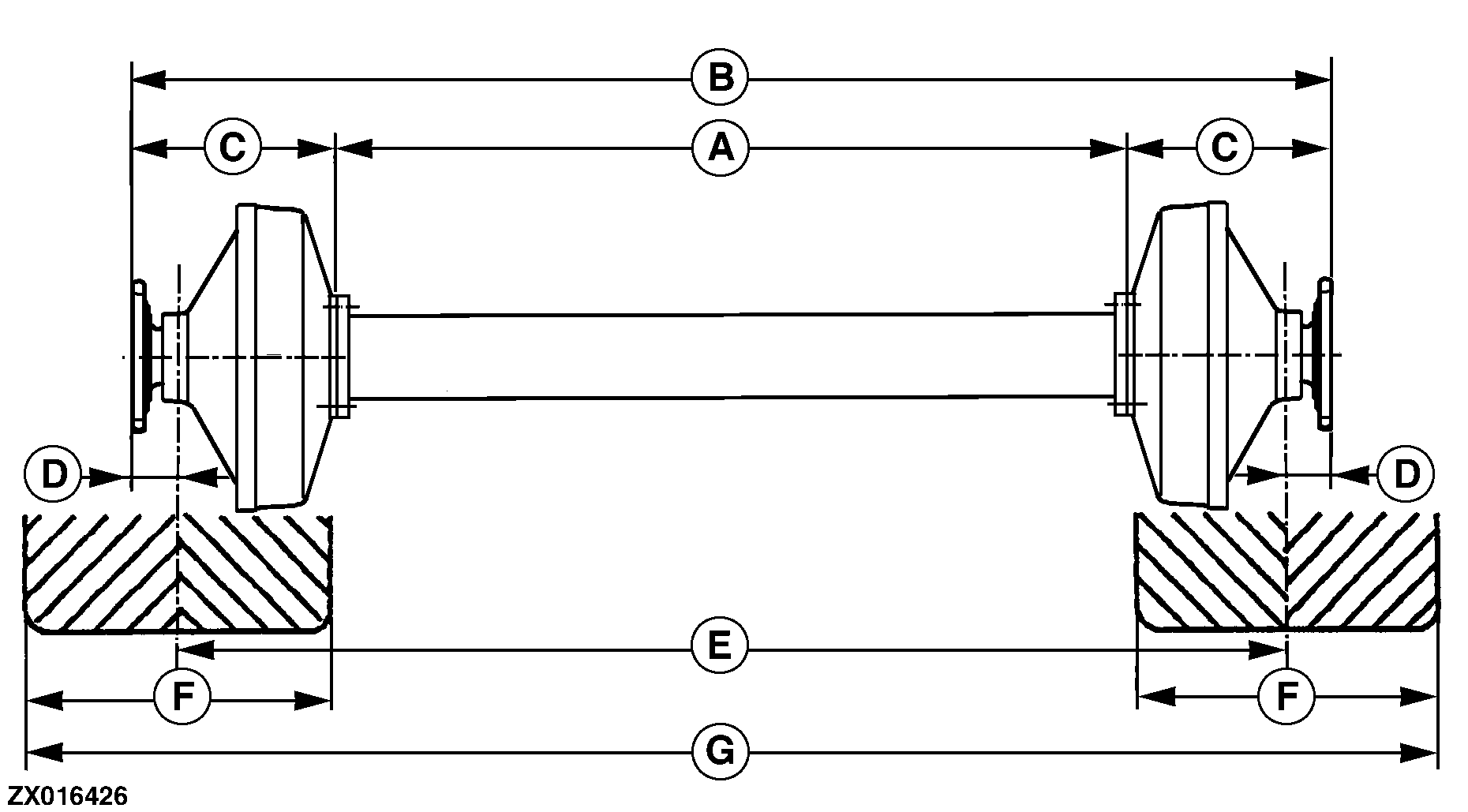

Overall Width and Track Width
|
|
|
|
|
OUZXMAY,0000495 -19-01NOV03-1/2 |
| Tires | Rims | Press-in depth | Overall width 7200, 7300, 7400, 7500 |
Track width 7200, 7300, 7400, 7500 |
|---|---|---|---|---|
| 24.5 - 32 (20 PR) | DH 20x32 | +40 mm (+ 1.58 in.) | max. 3130 mm (10 ft, 3.23 in.) | 2504 mm (8 ft, 2.58 in.) |
| 24.5 - 32 (20 PR) | DH 20x32 | +110 mm (+ 4.33 in.) | max. 3120 mm (10 ft, 2.83 in.) | 2488 mm (8 ft, 1.96 in.) |
| 620/75R34, 170, A8 | DW20Ax34 | +113 mm (+ 4.45 in.) | max. 2950 mm (9 ft, 8.14 in.) | 2358 mm (7 ft, 8.83 in.) |
| 650/75R32, 167, A8 | DH20x32 | +40 mm (+ 1.58 in.) | max. 3160 mm (10 ft, 4.40 in.) | 2504 mm (8 ft, 2.58 in.) |
| 650/75R32, 167, A8 | DH20x32 | +110 mm (+ 4.33 in.) | max. 3150 mm (10 ft, 4.02 in.) | 2488 mm (8 ft, 1.96 in.) |
| 650/75R32, 172, A8 | DH20x32 | +40 mm (+ 1.58 in.) | max. 3160 mm (10 ft, 4.4 in.) | 2504 mm (8 ft, 2.58 in.) |
| 650/75R32, 172, A8 | DH20x32 | +110 mm (+ 4.33 in.) | max. 3150 mm (10 ft, 4,02 in.) | 2488 mm (8 ft, 1.96 in.) |
| 800/65R32, 167, A8 | DW25Ax32 | -7/+51 mm (-0.28/+ 2,01 in.) | max. 3300 mm (10 ft, 9.92 in.) | 2540 mm (8 ft, 4.0 in.) |
| 800/65R32, 167, A8 | DW25Ax32 | -30 mm (- 1.18 in.) | max. 3440 mm (11 ft, 3.43 in.) | 2644 mm (8 ft, 8.1 in.) |
| 800/65R32, 172, A8 | DW25Ax32 | -7/+51 mm (-0.28/+ 2,01 in.) | max. 3300 mm (10 ft, 9.92 in.) | 2540 mm (8 ft, 4.0 in.) |
| 800/65R32, 172, A8 | DW27Ax32 | -171 mm (- 6.73 in.) | max. 3800 mm (12 ft, 5.6 in.) | 3050 mm (10 ft, 0.08 in.) |
| 900/55R32, 173, A8 | DW27Ax32 | +7 mm (+ 0.28 in.) | max. 3570 mm (11 ft, 8.56 in.) | 2694 mm (8 ft, 10.07 in.) |
| 1050/50R32, 174, A8 | DW36Ax32 | -100 mm (-3.94 in.) | max. 3980 mm (13 ft, 6.96 in.) | 2908 mm (9 ft, 6.49 in.) |
|
NOTE: Dimensions apply ex factory and without wider track. |
