Length-of-Cut Transmission (Four-Speed LOC)

Length of cut is directly influenced by:

• the feeding speed (feed roll speed)
• the number of cutterhead knives

The feeding speed of feed rolls is adjusted at shift rods (A) and (B) of length-of-cut transmission.

The harvesting unit speed is adjusted at shift rod (C).

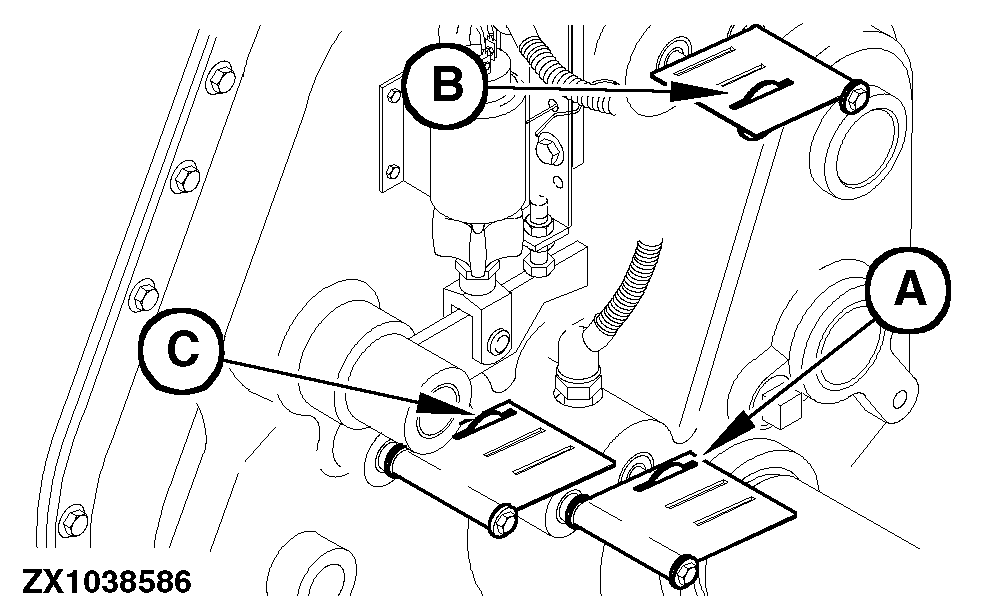

A-Shift rod for feed roll speed
B-Shift rod for feed roll speed
C-Shift rod for harvesting unit speed
