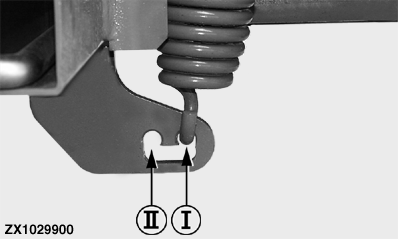

Feed Roll Spring Attaching Points

IMPORTANT: Use only positions (I) and (II) to attach feed roll springs.

NOTE: Position (I) is the factory setting.

Position (I): for grass and corn

Position (II): for corn only to improve quality of cut by increasing upper roll pressure on crop
