Adjusting Smooth Roll Scraper

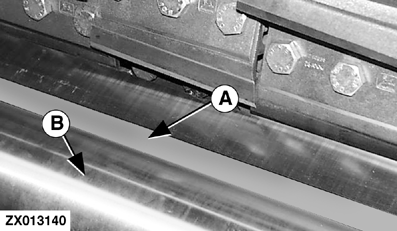

Scraper (A) is properly adjusted if clearance between roll (B) and scraper is 0.2 mm (0.008 in.) at the narrowest point and the roll can turn freely.

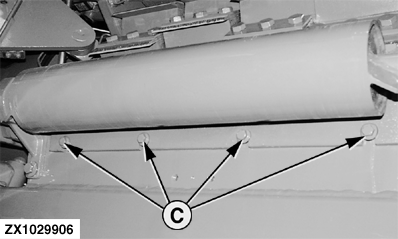

Loosen four screws (C) and adjust scraper evenly.

IMPORTANT: To ensure a smooth crop flow, clean smooth roll, scraper and area between scraper and stationary knife. Replace scraper if excessively worn.

A-Scraper
B-Smooth roll
C-Screws (4 used)
