Fuel Tank Water Trap

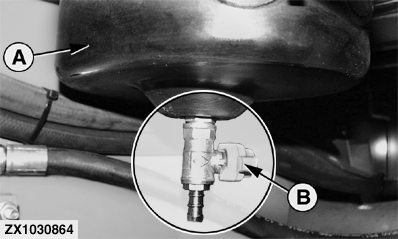

In the water trap (A) water and sediment are collected.

Every day before starting to operate open drain tap (B) until water and sediment deposits have drained off and clean fuel appears.

IMPORTANT: If fuel is extremely contaminated drain off water and deposits more often - if necessary several times per day.

OUZXMAY,000056C -19-17SEP02-1/1
