Replacing IVLOC Oil Filter

Replace filter elements (A) and (B) the first time after 100 hours.

After that replace filter elements (A) and (B) every 500 hours of operation or at the end of the harvesting season (whichever occurs first).


A-Intake Filter
B-Suction Filter

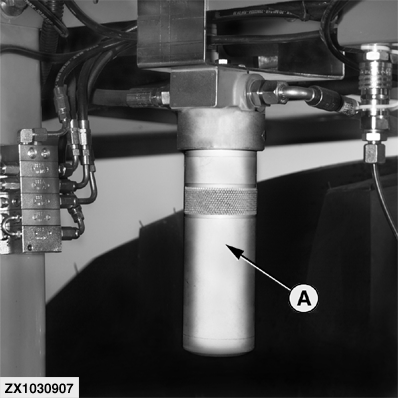

ZX1030907

IVLOC Oil Filter - Intake Filter

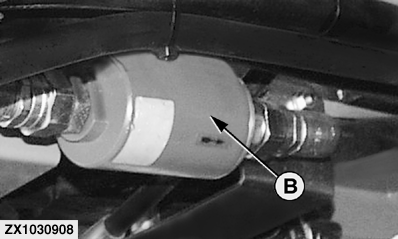

ZX1030908

IVLOC Oil Filter - Suction Filter

OUZXMAY,000058A -19-01NOV03-1/1
