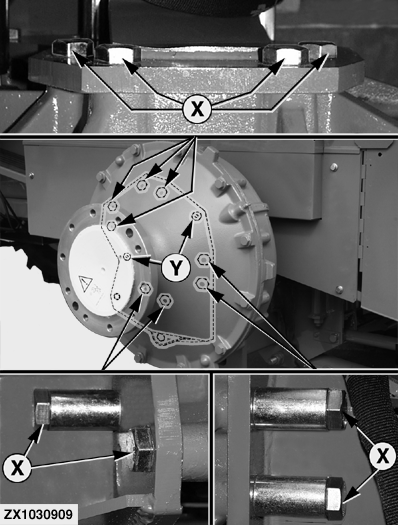

Final Drive Attaching Screws

During the first 50 hours of operation, tighten attaching screws at least every 10 hours of operation as follows:

• X - 620 N·m (457 lb-ft)
• Y - Centering Pin

OUZXMAY,000058B -19-21SEP02-1/1
