Transmission Attaching Screws to Front Axle

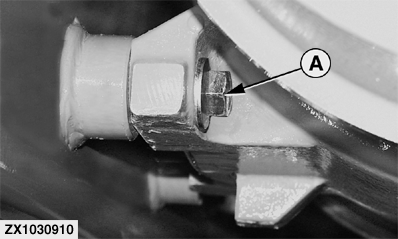

Tighten nuts of cap screws (A) during the first 50 hours of operation at least every 10 hours of operation as specified:

ZX1030910
Item Measurement Specification

Nuts of Cap Screws

Torque 180 N·m (133 lb-ft)

OUZXMAY,000058C -19-21SEP02-1/1
