Front Axle

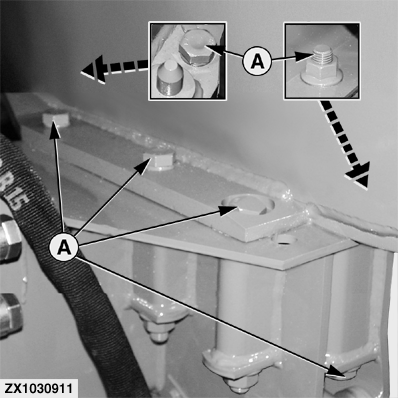

Tighten nuts of cap screws (A) during the first 50 hours of operation at least every 10 hours of operation as specified:

ZX1030911
Item Measurement Specification

Nuts of Cap Screws

Torque 550 N·m (406 lb-ft)

OUZXMAY,000058D -19-21SEP02-1/1
