Steering Cylinder Support Attaching Screws to Rear Axle

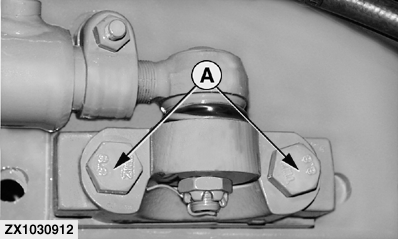

Tighten nuts of cap screws (A) after the first 10 hours of operation as specified:

ZX1030912
Item Measurement Specification

Nuts of Cap Screws

Torque 240 N·m (170 lb-ft)

OUZXMAY,000058E -19-21SEP02-1/1
