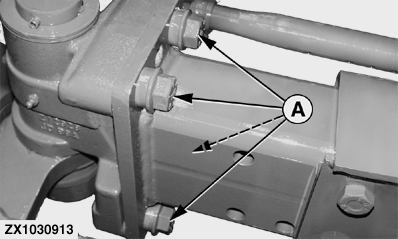

Yoke Attaching Screws to Rear Axle Sliding Sleeve

Tighten cap screws (A) after the first 10 hours of operation as specified:

ZX1030913
Item Measurement Specification

Cap Screws

Torque 575 N·m (424 lb-ft)

OUZXMAY,000058F -19-21SEP02-1/1
