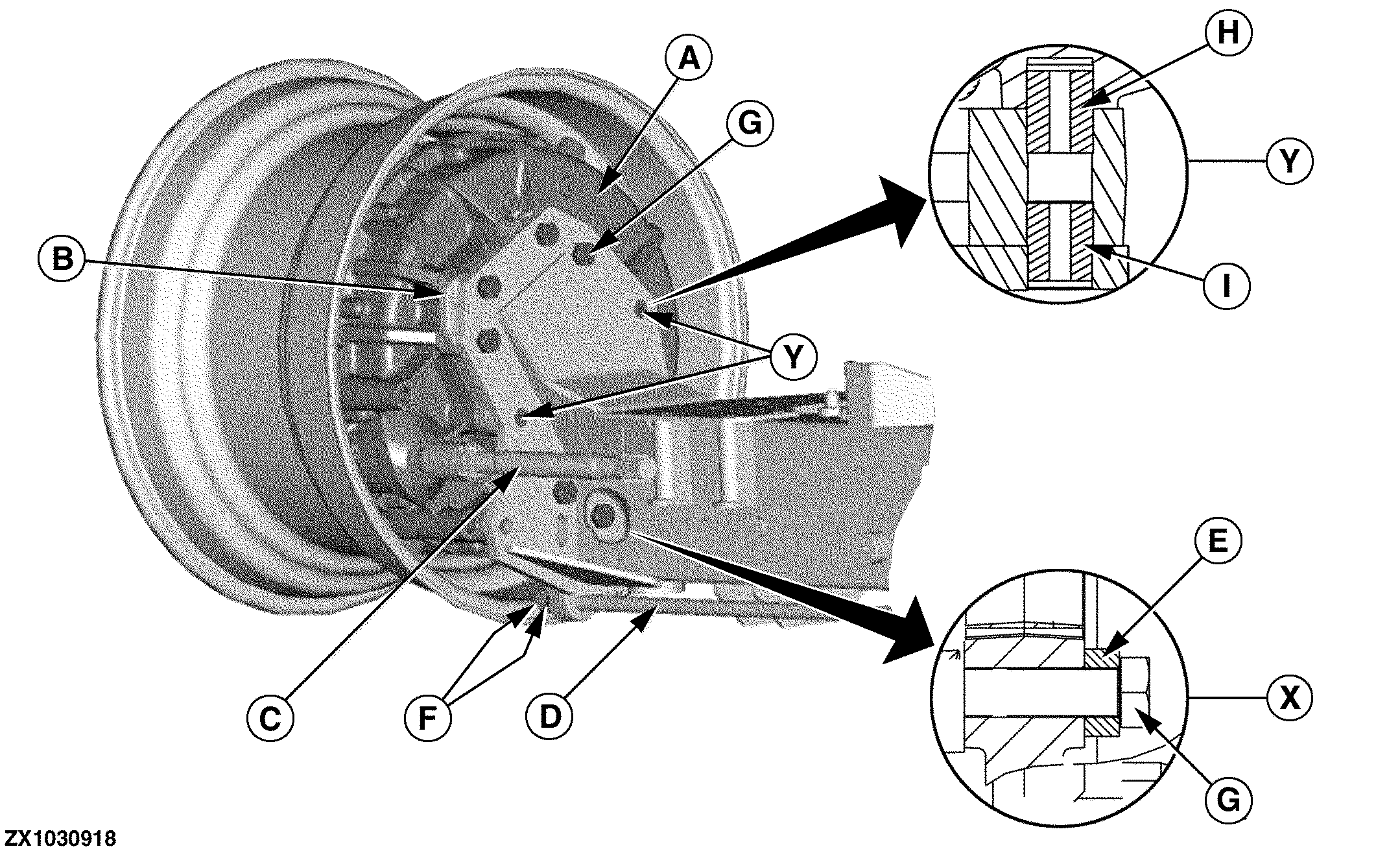

Reinforced Front Axle

ZX1030918


A-Final Drive (10/95) (2x)
B-Spacer (2x)
C-Drive Shaft (2x)


D-Rod (1x)
E-Spacer (2x)


F-Nut (4x)
G-Cap Screw (16x)


H-Bushing (4x) (detail "Y")
I-Bushing (4x) (detail "Y")

Only for use with the following tires:

  • 24.5-24
  • 650/75R32
  • 650/75R32 + 18.4R38 (Twin Tires)
  • 800/65R32
  • 900/55R32
  • 1050/50R32

Detail "X"

Before mounting to front axle, assemble spacer (E) to final drive (A) and torque screw (G) as specified (use

Loctite 243):

Specification

Cap Screws (G) -Torque 620 N·m (457 lb-ft)

Torque nuts (F) as specified:

Specification

Nuts (F) -Torque 240 N·m (177 lb-ft)

OUZXMAY,0000592 -19-14SEP04-1/1
