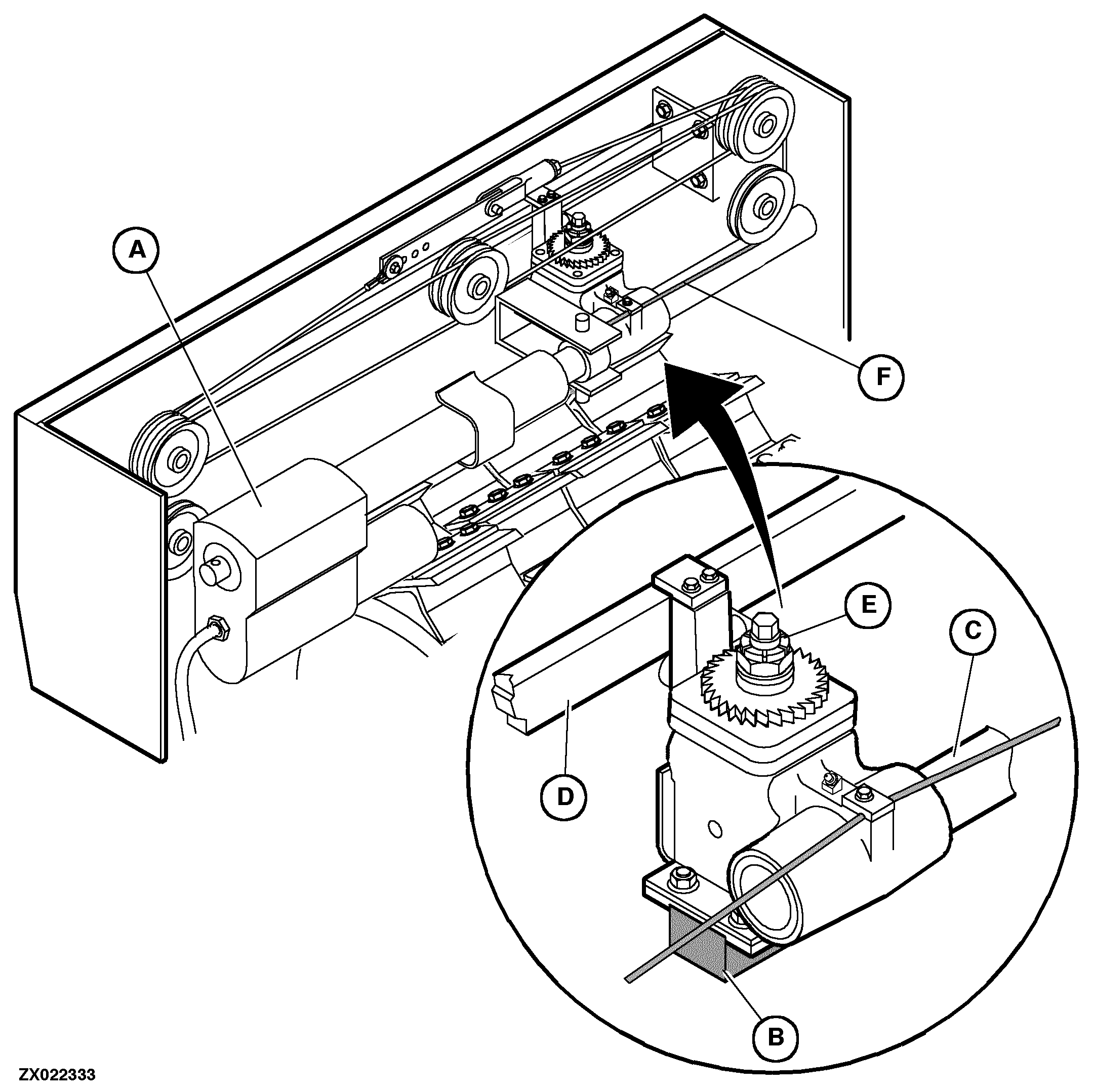

A-Sharpening Stone Motor (Right / Left)

B-Sharpening Stone
C-Guide Shaft

D-Guide Rail
E-Sharpening Stone Lowering Ratchet

F-Cable

Motor (A) moves sharpening stone to the left and the right across cutterhead which is turning backwards.

OUZXMAY,0000598 -19-22SEP02-1/2

NOTE: Replacing sharpening stone: See this section.

Aligning knife sharpening device: See this section.

Calibrations with reference to the sharpening stone see "SPF Addresses - SPFH Main Control Unit".

OUZXMAY,0000598 -19-22SEP02-2/2
