Kernel Processor Feed Plate

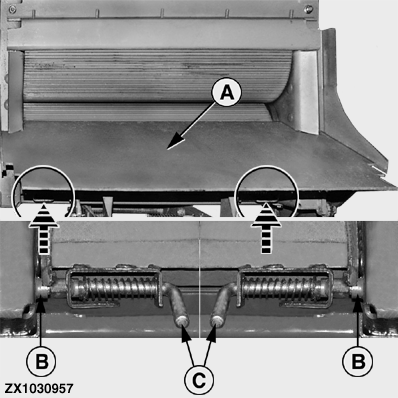

Position feed plate (A) between the sidewalls and place on sleeves (B).

On both sides turn lock (C) 90° (to the front) and engage into kernel processor side walls.

ZX1030957

OUZXMAY,00005AA -19-01NOV03-1/2

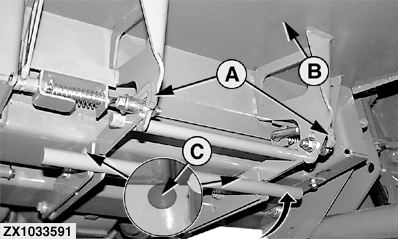

Engage locking device (A) into feed plate (B).

Close feed plate (B) and secure locking device (A) with screws (C).

ZX1033591

OUZXMAY,00005AA -19-01NOV03-2/2
