Switches - Underneath The Operator's Station

Kernel Processor Electric Lift Function (Option)

To mount and dismount the kernel processor, an electrical bundle is available that provides a lift motor, switch (A) to control the up and down movement of the kernel processor and a special harness that is mounted to the liquid injection output of the control unit.

The function is used as follows:

Whenever the operator presses the liquid injection pump switch (at arrmrest control panel) twice, the liquid injection output of the control unit is powered regardless whether field mode is active or not. This double click is used to power the line to the optional harness for kernel processor lift to connect a separate lift motor for kernel processor mounting or dismounting.

Use switch (A) for kernel processor raise and lower movement.

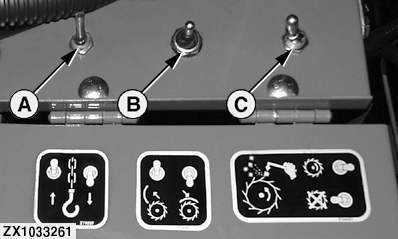

A-Kernel Processor Electric Lift Function - Raise / Lower (Option)
B-Sharpen Door - Open / Close
C-Rotate Cutterhead in Reverse Direction (Manual Sharpening of Cutterhead Knifes) - Engage / Disengage

OUZXMAY,00005B8 -19-01NOV03-1/1
