Adjustments - Feed Roll Cut Off Clutch - IVLOC

causym CAUTION: Before carrying out any adjustment or service work, always disengage all drives, shut off engine and wait until all moving parts have stopped.

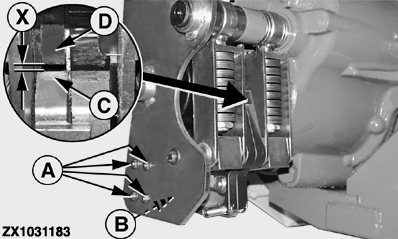

Adjusting Quick Stop Lever

Loosen lock nuts (A).

Move bracket (B) until clearance X = 1 mm (0.039 in.) is obtained between quick stop lever (C) and cam wheel (D). Tighten lock nuts (A).


A-Lock Nuts
B-Bracket
C-Quick Stop Lever
D-Cam Wheel

ZX1031183

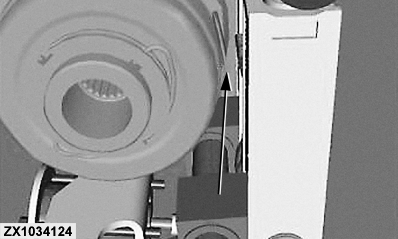

ZX1034124

OUZXMAY,00005ED -19-01NOV03-1/2

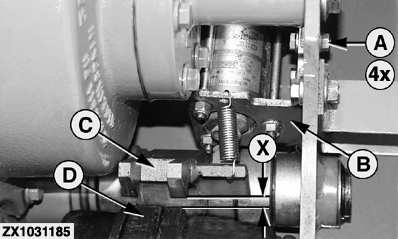

Adjusting Reversing Lever

Loosen lock nuts (A).

Move bracket (B) until clearance X = 2 mm (0.078 in.) is obtained between reversing lever (C) and cam wheel (D). Tighten lock nuts (A).


A-Lock Nuts
B-Bracket
C-Reversing Lever
D-Cam Wheel

ZX1031185

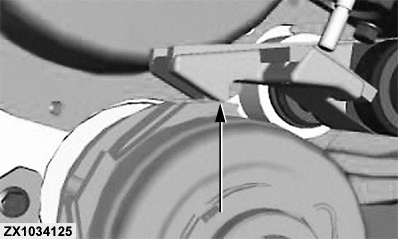

ZX1034125

OUZXMAY,00005ED -19-01NOV03-2/2
