Checking Engine Crankcase Oil Level - Cummins Engine

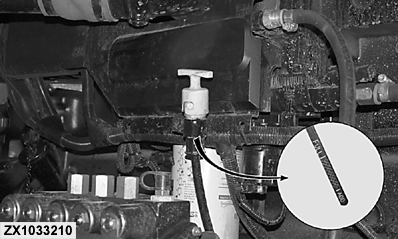

Before removing dipstick, clean surrounding area thoroughly.

Oil level should be between upper and lower marks on dipstick.

• FULL-Maximum
• ADD-Minimum

Loosen the tommy screw before pulling out dipstick. Tighten tommy screw after oil level check.

OUZXMAY,0000601 -19-01NOV03-1/1
