Overall and Track Width - Adjustable Rear Axle

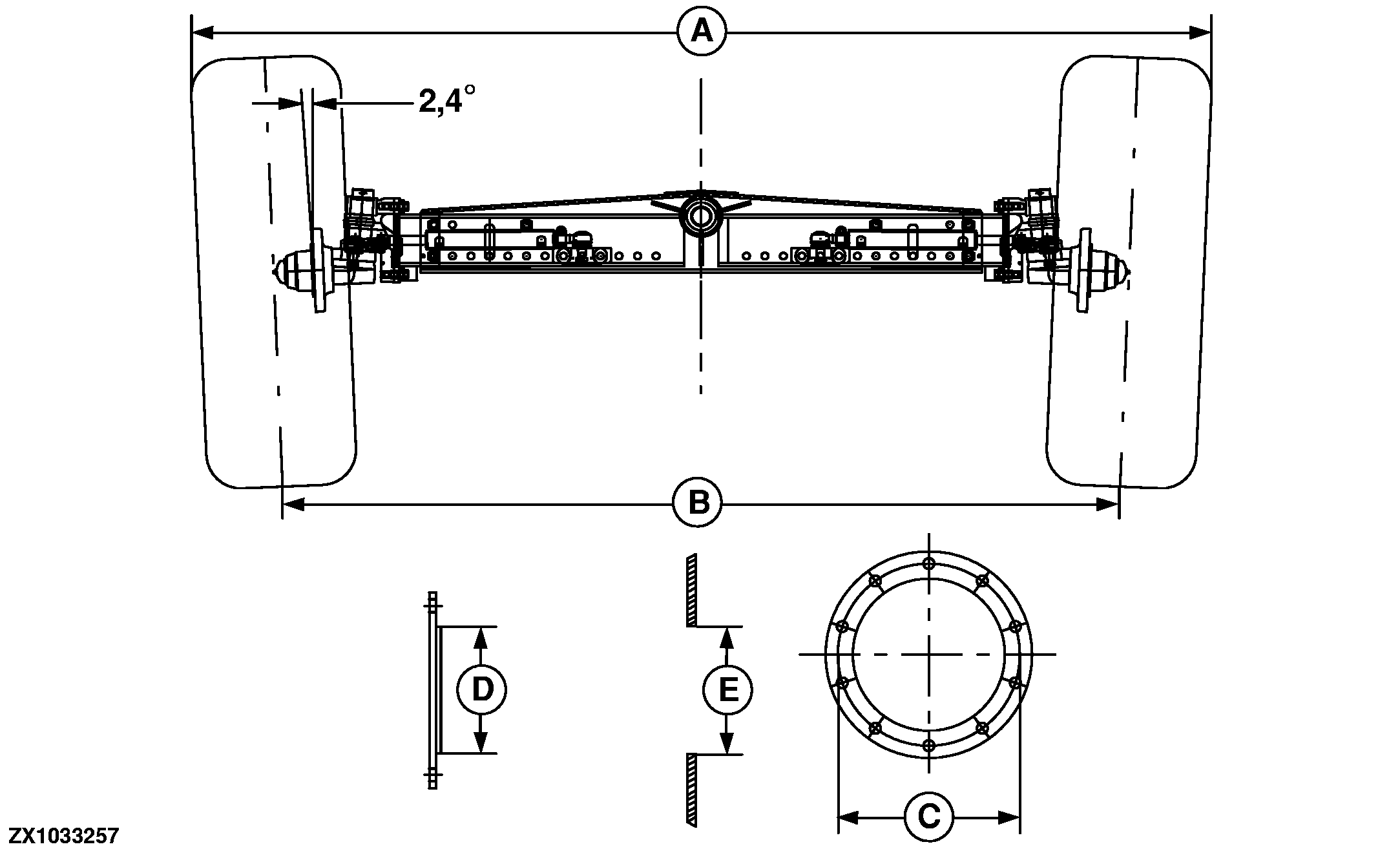

ZX1033257


A-Overall width
B-Track width


C-Pitch circle diameter, flange (203.2 mm (8 inch))


D-Inner diameter, flange (152.35 mm (6 inch))


E-Inner diameter, rim (152.5 mm (6.01 inch))

Overall and Track Width - Adjustable Rear Axle

Tires Press-in depth Overall width Track width
16.5/85-24 -117 mm (-4.06 inch) max. 2863 mm (9.39 ft) 2336 mm (7.66 ft)
18.4-26 -18 mm (-0.71 inch) max. 2715 mm (8.91 ft) 2134 mm (7 ft)
480/80R26
Michelin		 -110 mm (-4.33 inch) max. 2903 mm (9.52 ft) 2318 mm (7.60 ft)
480/80R26
Good Year		 -110 mm (-4.33 inch) max. 2899 mm (9.51 ft) 2318 mm (7.60 ft)



NOTE: Dimensions on table are given for adjustable rear axle when no holes are visible on each side.

One pair of holes on each side extends the rear axle width by 102 mm (4 inch).

OUZXMAY,0000616 -19-01NOV03-1/1
