OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: OUZXMAY_0000629_19

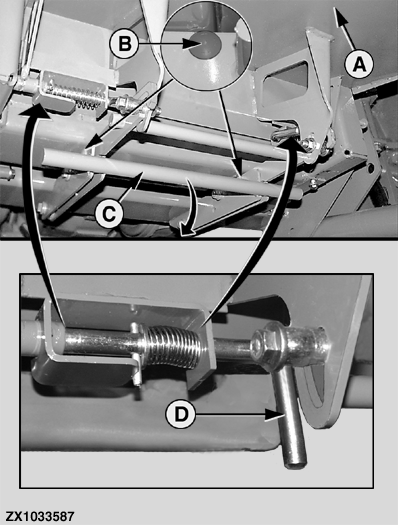

To open / disengage service cover / feed plate (A), remove screw (B) on both sides first.

Pull down locking device (C).

Disengage the service cover / feed plate (A). To do this, pull the latches (D) in, turn them though 90° and leave them in this position.

Engage and close service cover / feed plate (A) in reverse order.

OUZXMAY,0000629 -19-01NOV03-1/1
