OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: OUZXMAY_000062B_19

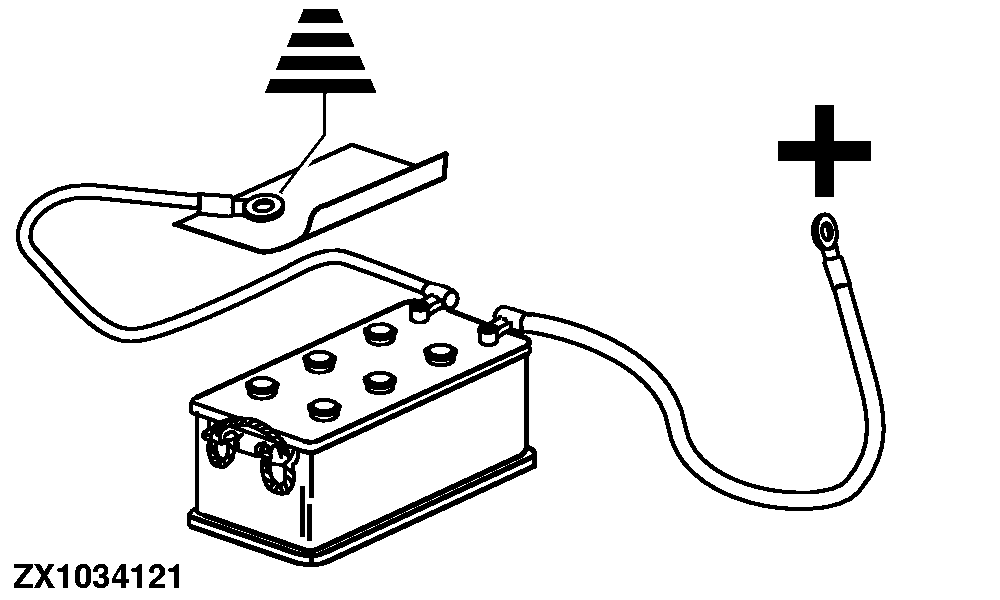

Forage harvesters 7200, 7300, 7400, 7500 and 7700 are equipped with one 12 V (174 AH) battery.

The battery is located in the load center compartment.

OUZXMAY,000062B -19-01NOV03-1/2

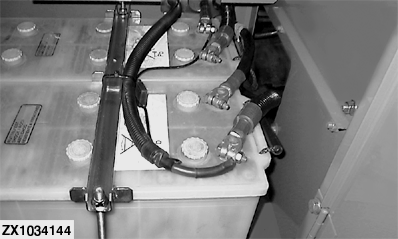

Forage harvester 7800 is equipped with two 12 V (174 AH) batteries connected in parallel.

The batteries are located in the load center compartment.

OUZXMAY,000062B -19-01NOV03-2/2
