Address SPF 105 Calibration - Number Of Cutterhead Knifes

Ignition is switched on.

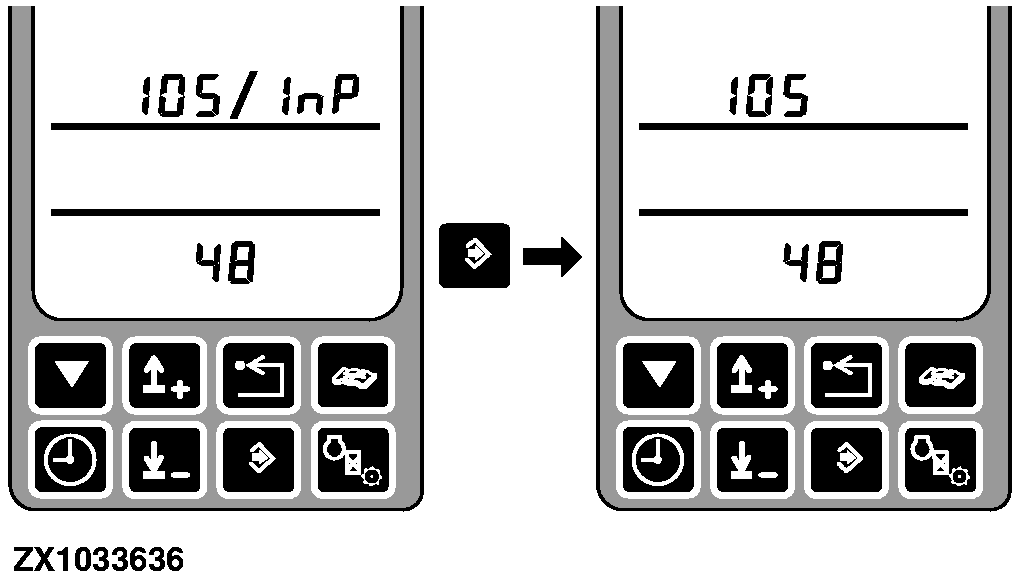

After entering this diagnostic address the display will show the address, and the current number of knifes.

NOTE: Only values of 20, 24, 28, 30, 36, 40, 42, 48, and 56 knives are allowed.

Turn the input control knob clockwise to increase the number of cutterhead knifes.

Turn the input control knob counterclockwise to decrease the number of cutterhead knifes.

Press the enter switch to store the number of cutterhead knifes and exit the calibration.

OUZXMAY,0000634 -19-01NOV03-1/2

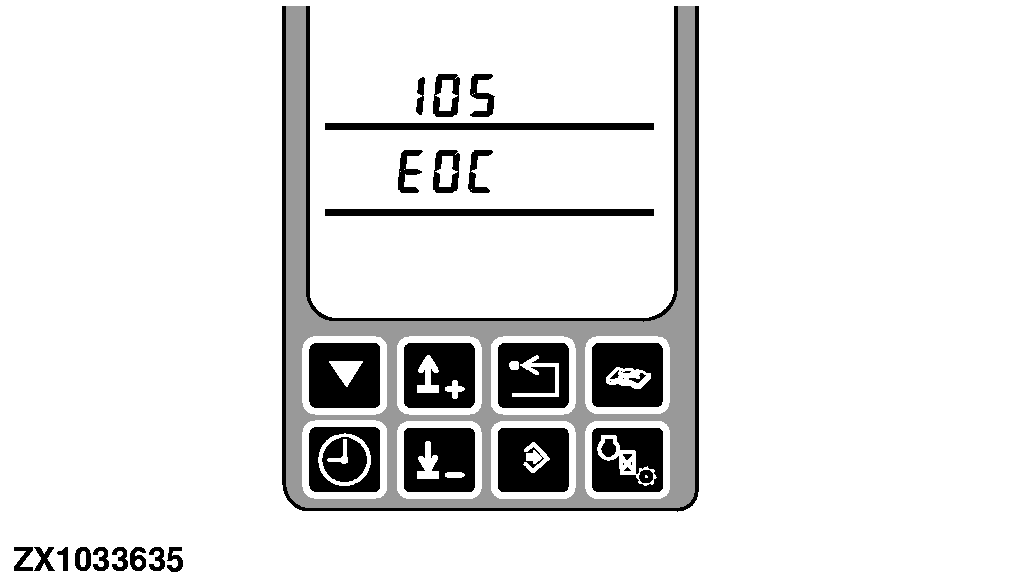

EOC will display the end of calibration mode.

OUZXMAY,0000634 -19-01NOV03-2/2
