OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: OUZXMAY_000063A_19

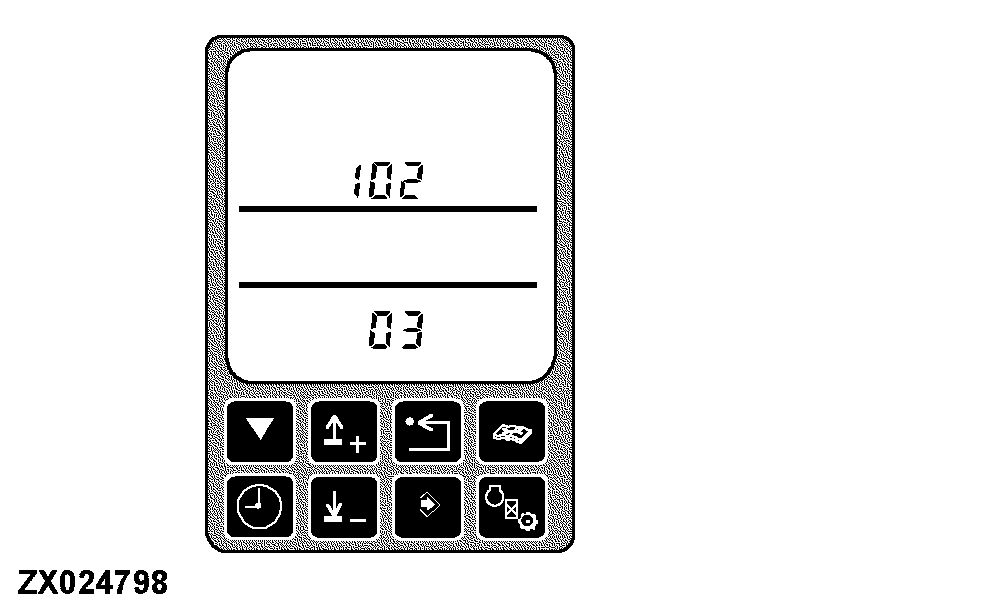

Address RGC 102 Calibration - Filter Setting

The filter setting parameter determines how much filtering is applied to the feeler inputs before being used by the control unit.

OUZXMAY,000063A -19-01NOV03-1/2

NOTE: A value of 1 selects minimal filtering of the feelers. Increasing this value de-sensitizes the feelers which can help if the system seems to over-respond with small changes to the feeler inputs.

The value of the filter setting is between 1 and 11.

Default value - 3

OUZXMAY,000063A -19-01NOV03-2/2
