Address ARC 107 Calibration - Circular Button Configuration

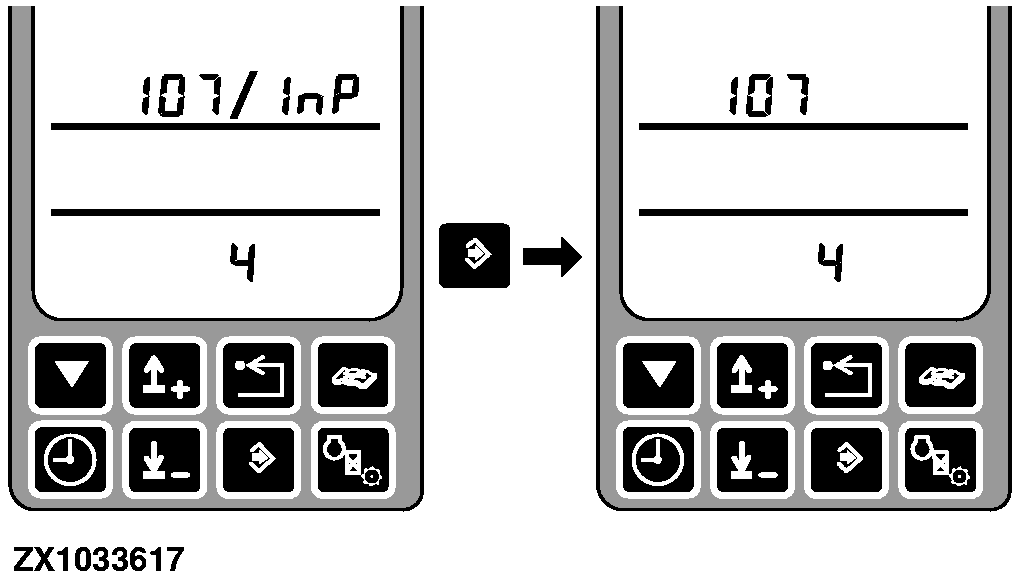

After entering this address the display shows the address and the value.

0 - No function

1 - Return to upper position

2 - Return to lower position

3 - Return to pressure

4 - Row guidance enable

5 - Selective control valve I control (single click drives SCV I + and a double click drives SCV I -)

6 - Sound communication horn

Default value - 4

Use the calibration switch and the arrow switches to change the value.

Press the enter switch to store the value.

OUZXMAY,0000648 -19-01NOV03-1/1
