Grease

IMPORTANT: For forage harvesters equipped with Automatic Lubrication see "Operational Information", Section Lubrication, Periodic Service.

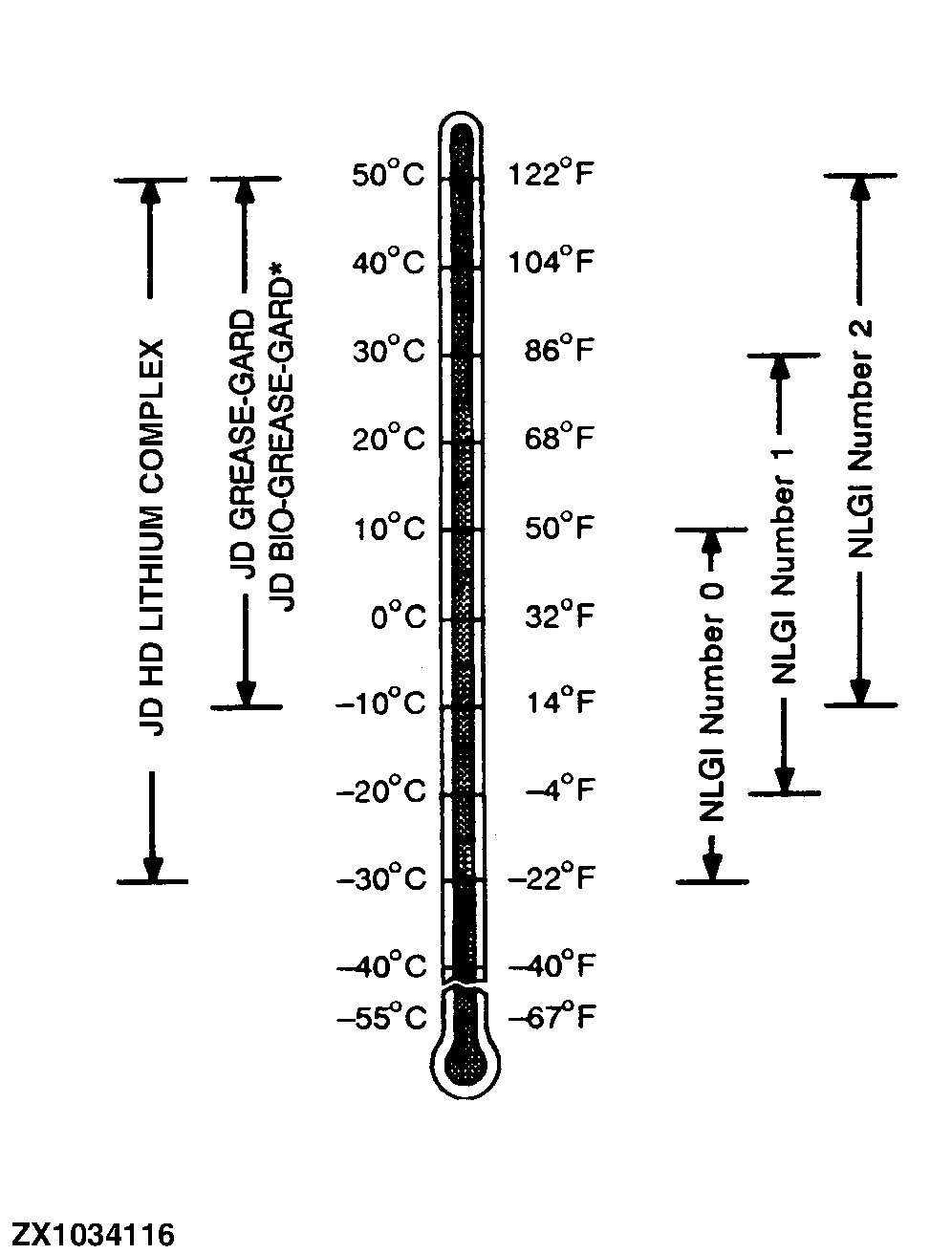

Use grease based on the expected air temperature range during the service interval.

The following grease is preferred:

  • John Deere HD LITHIUM COMPLEX Grease

The following greases are also recommended:

  • John Deere GREASE-GARD
  • John Deere BIO-GREASE-GARD 1

Other greases may be used if they meet one of the following:

  • SAE Multipurpose EP Grease with a maximum of 5% molybdenum disulfide
  • SAE Multipurpose EP Grease

Greases meeting Military Specification MIL-G-10924F may be used at temperatures below -30°C (-22°F).

ZX1034116

1 This grease meets or exceeds the minimum biodegradability of 80% within 21 days according to CEC L-33-T-82 test method.

OUZXMAY,0000651 -19-25SEP03-1/2

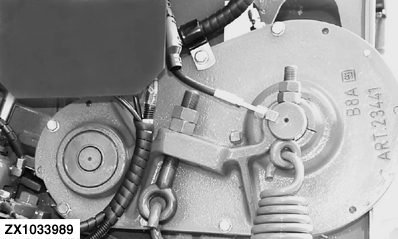

In Gear Transmission

Capacity: 0.8 kg (27.05 oz)

John Deere CORN HEAD GREASE is recommended for the feedroll gear transmission.

You may also use SAE Multipurpose Grease with Extreme Pressure (EP) Performance and meeting NLGI Consistency Number 0.

ZX1033989

OUZXMAY,0000651 -19-25SEP03-2/2
