OMZ82299: 7200, 7300, 7400, 7500, 7700 and 7800 Self-Propelled Forage Harvesters(507479- ), Block File: ZX_OMSPFH001241_19

Blower Bottom With Wear Plate

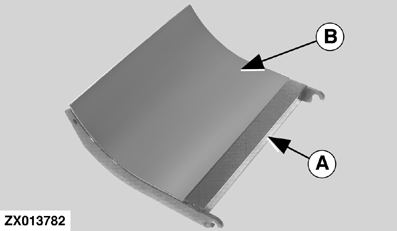

The blower bottom consists of a welded frame (A) and wear plate (B).

The wear plate is made of wear-resistant steel and is 8 mm (0.31 in.) thick. Frame (A) is also used to adjust clearance between blower paddles and wear plate.

ZX,OMSPFH001241 -19-01NOV97-1/1
