Roll Wear and Replacement

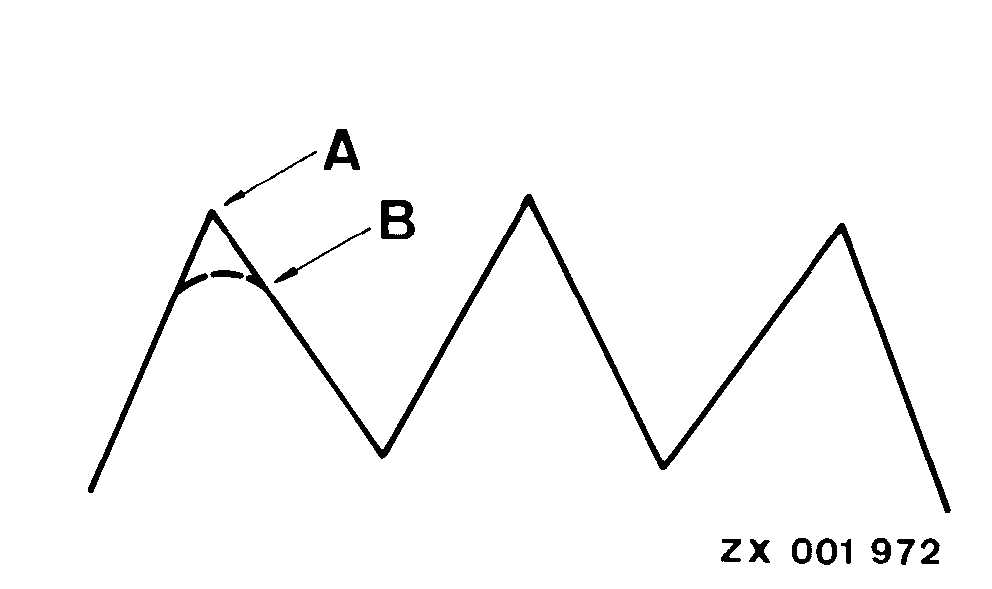

Worn teeth on the rolls may cause increased power requirement, reduced harvesting performance, possible roll plugging and fewer cracked kernels. Rolls should be replaced when teeth are worn as shown on illustration.

A-New roll tooth
B-Worn roll tooth

ZX,OMUSFH000667 -19-01APR93-1/1
