Header Drive

IMPORTANT: The header drive control lever has an emergency button in the handle. Gently press the button with the palm of the left hand to disengage the header.

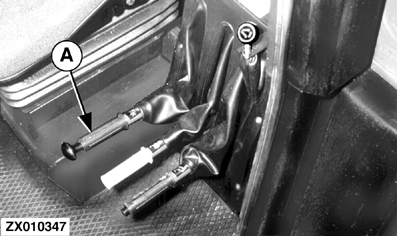

Fully lift the lever (A) from its neutral position to engage the header.

Place the lever (A) into neutral position to disengage the header.

Fully lower the lever (A) to reverse the header.

NOTE: The road safety switch must be in field position to engage the header.
