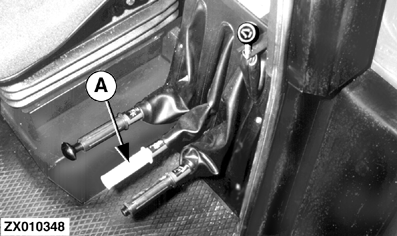

The threshing unit drive lever has a yellow handle.

Lift the lever (A) completely to engage the threshing unit.

Lower the lever (A) completely to disengage the threshing unit.

NOTE: The road safety switch must be in field position to engage the threshing unit.
