Separator Cylinder Speed

The normal cylinder speed range is 400 to 1100 rpm.

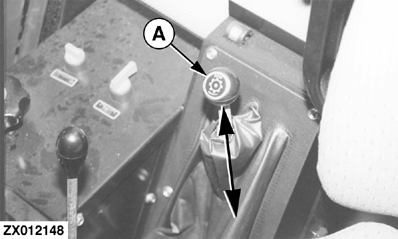

Move the lever (A) down to increase speed.

Move the lever (A) up to reduce speed.

ZX,OM1170009393 -19-01SEP97-1/2

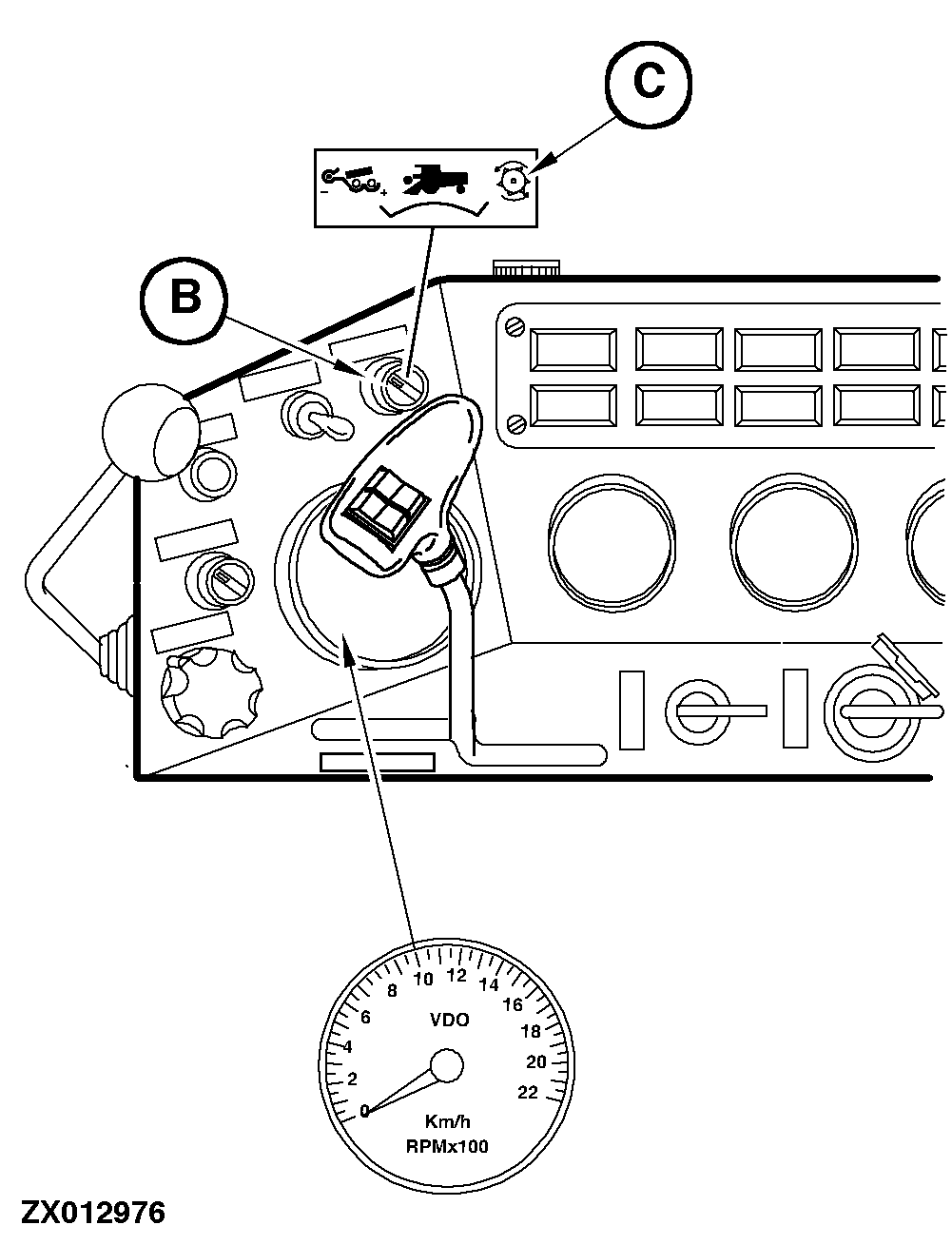

NOTE: Cylinder speed can be displayed if tachometer switch (B) is set to cylinder speed position (C). See "Speedometer/Cylinder And Fan Tachometer Switch" in this Section.
